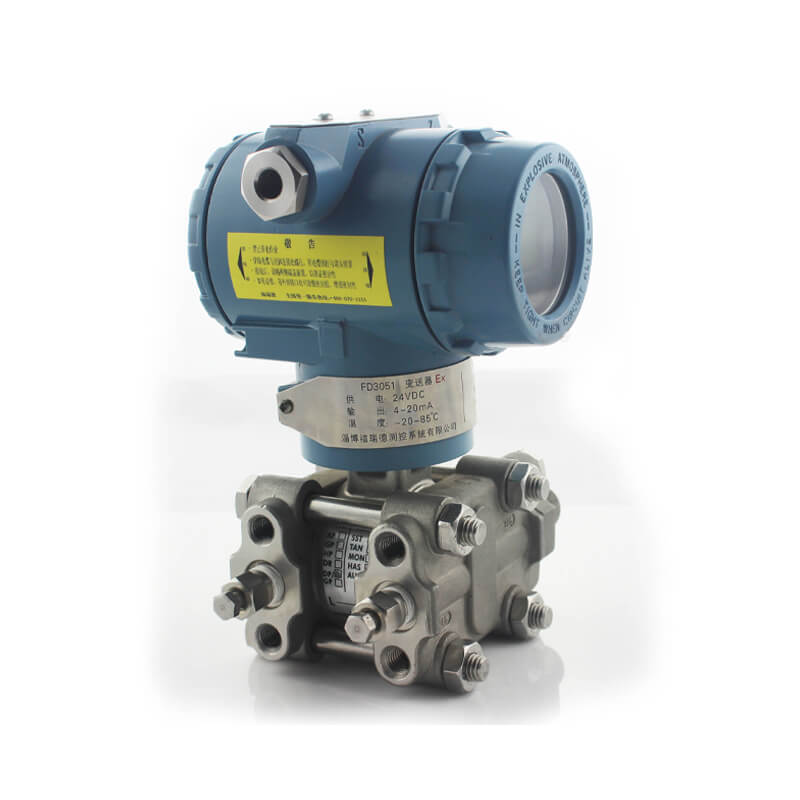

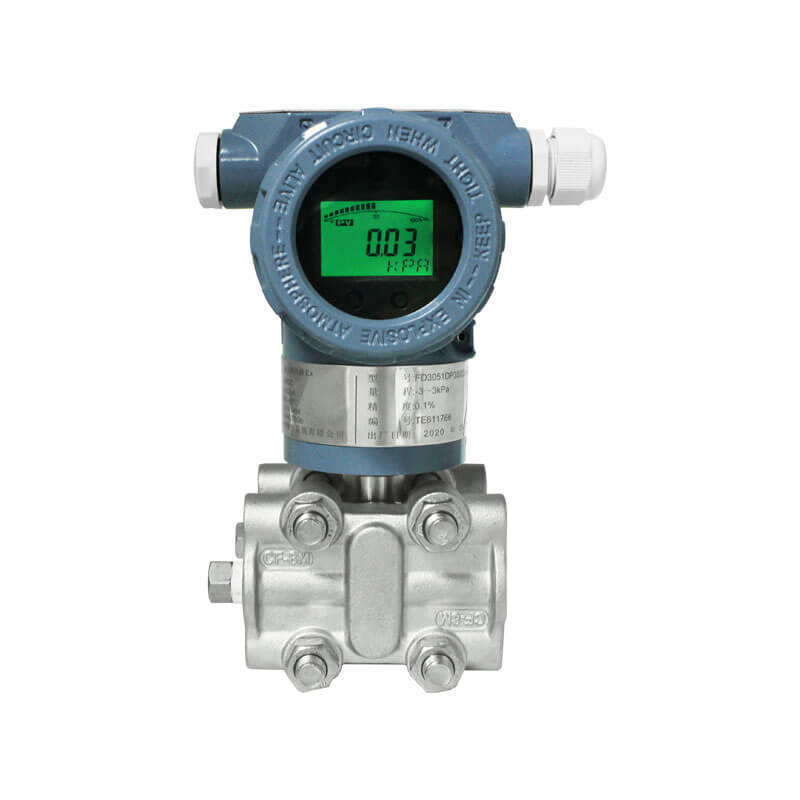

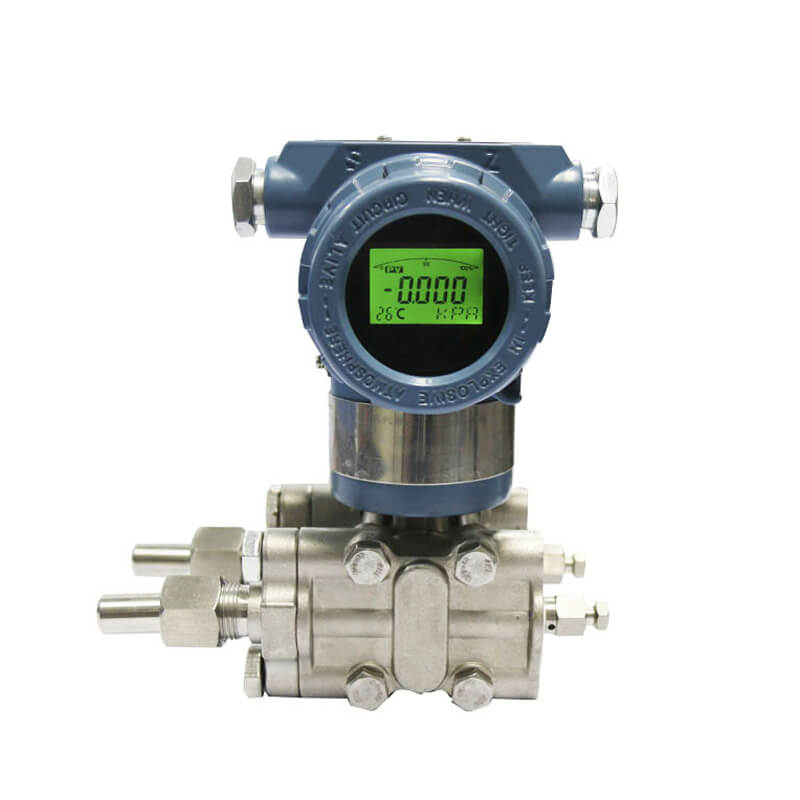

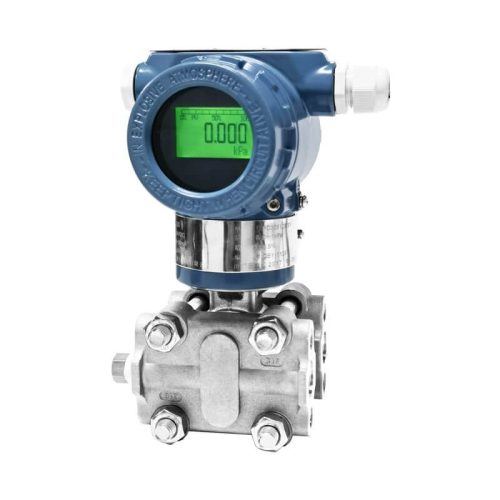

FD3051 DP Differential Pressure Transmitter

FD3051 DP Differential Pressure Transmitter

Product Feature
  • Wide measuring range,can measure gauge pressure, absolute pressure and negative pressure;
  • The sensor adopts digital compensation and nonlinear correction
  • IP65 protection design,suitable for field,open air and other harsh environments
  • Laser marking nameplate,the appearance is exquisite and meticulous
  • Meet the requirements of GB3836 standard and with explosion-proof certificate.
  • Digital circuit design,on-site button key reset

Measuring Range0-0.1kPa~40MPa(See model selection table)
Pressure TypeGauge;Absolute;Negative pressure(Optional)
Range ratio40:1
Accuracy0.25%F.S,0.5%F.S,
Long Stability0.1%F.S/year
Medium Temperature-20℃~80℃
Power Supply12V~32VDC(Recommended 24VDC)
Output Signal4mA~20mADC,1V-5VDC,RS485 Optional
Communication ProtocolMODBUS RTU,HART
Electrical ConnectionM20*1.5(F),1/2NPT Cable entry
Protection LevelIP65
Explosion ProofExd II C T6 Gb Ex ia II C T4 Gb Ex Td A21 IP66 T80℃
Warranty period12 months

FD3051 DP Intelligent 4~20mA HART Capacitive Industrial Differential pressure transmitter with the advanced micro processing technology and digital communication technology,high precision, high stability,alibrate parameters through computer or panel keys,remote parameter setting, remote control, self diagnosis and other functions,easy to operate with HART protocol.
