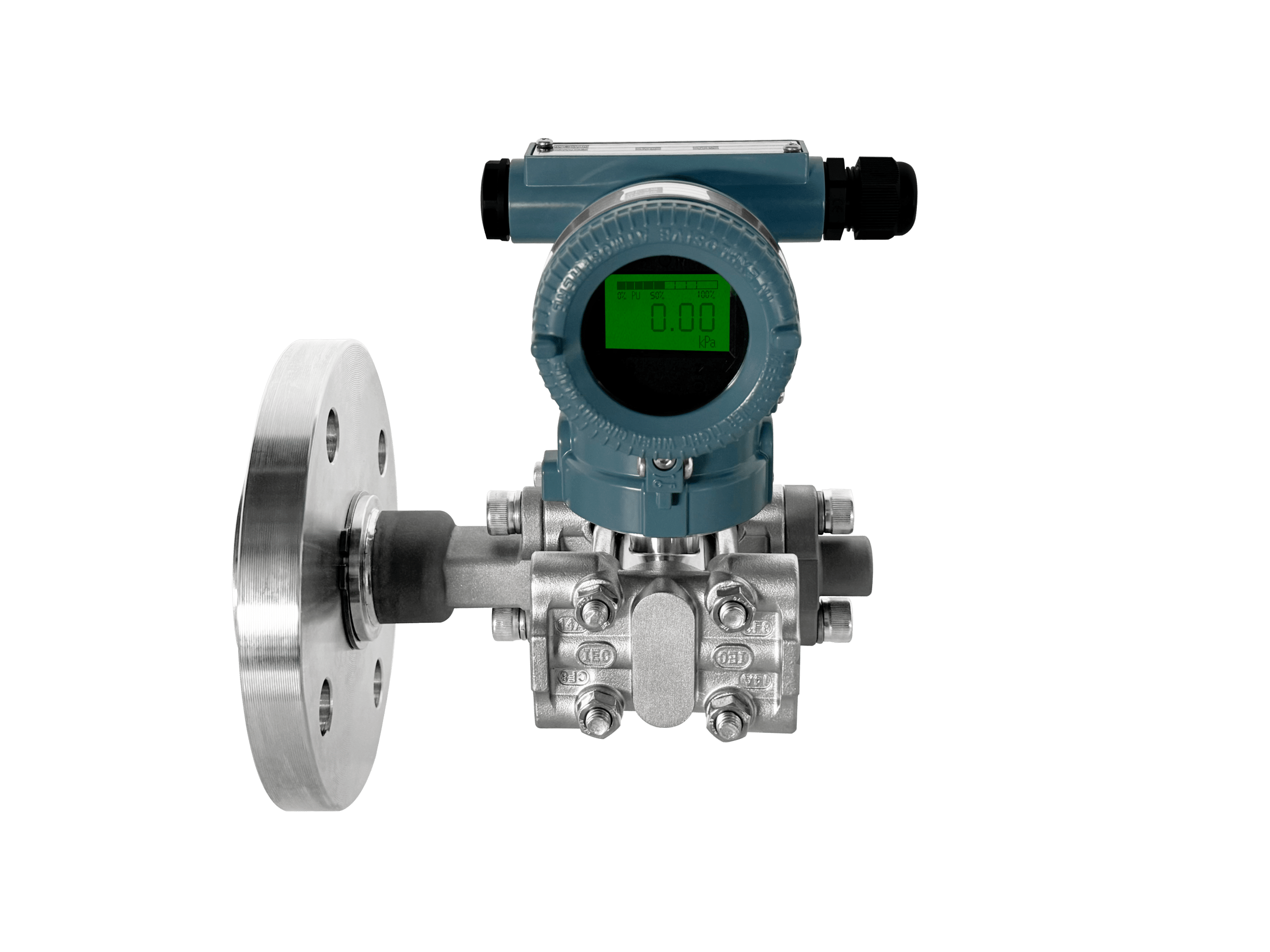

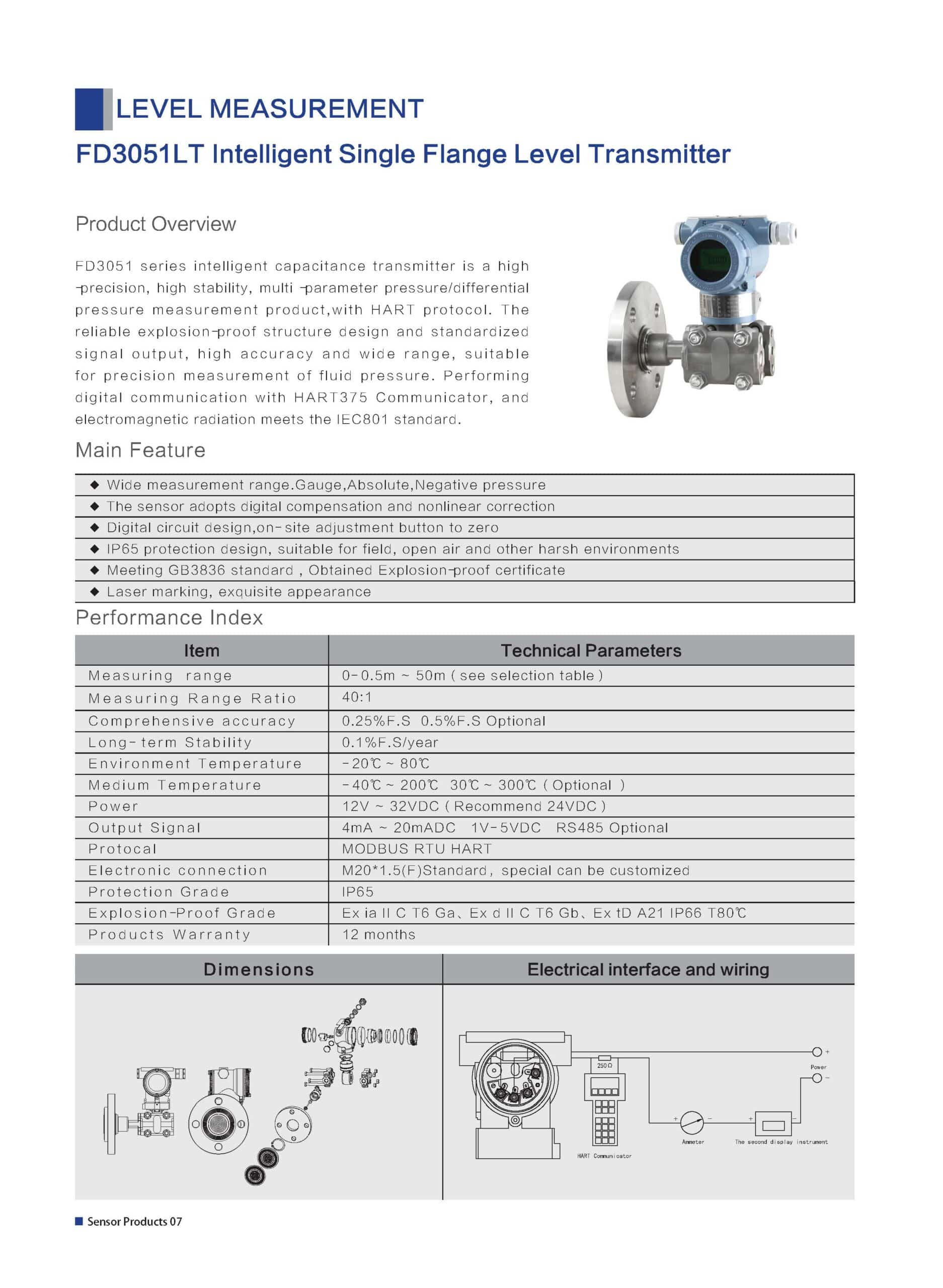

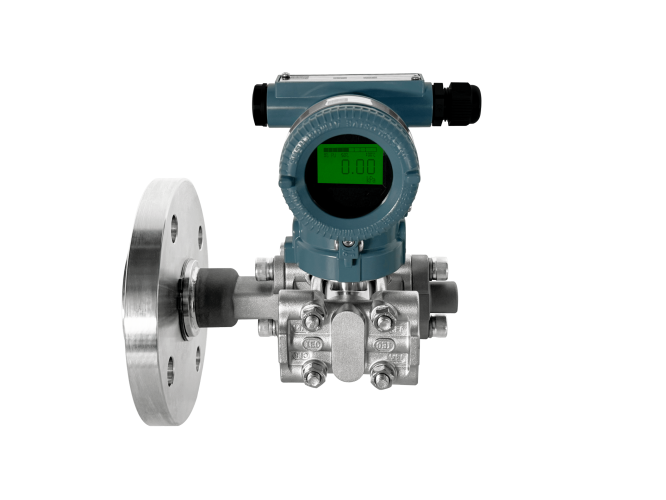

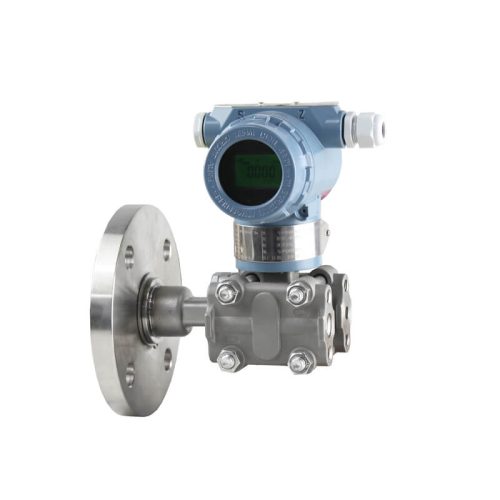

FD3051LT Intelligent Single Flange Level Transmitter

FD3051LT Intelligent Single Flange Level Transmitter

Product Feature

Wide measurement range.Gauge,Absolute,Negative pressure
The sensor adopts digital compensation and nonlinear correction
Digital circuit design,on- site adjustment button to zero
IP65 protection design, suitable for field, open air and other harsh environments
Meeting GB3836 standard , Obtained Explosion-proof certificate
Laser marking, exquisite appearance

Measuring Range	0-5kPa～10MPa（See model selection table）
Pressure Type	Gauge;Absolute;Negative pressure(Optional)
Range ratio	40:1
Accuracy	0.1%F.S,0.25%F.S,0.5%F.S,
Long Stability	0.2%F.S/year
Medium Temperature	-40℃～200℃,0℃～300℃ Optional
Power Supply	10V～30VDC（Recommended 24VDC）
Output Signal	4mA～20mADC,1V-5VDC,RS485 Optional
Communication Protocol	MODBUS RTU,HART
Electrical Connection	M20*1.5(F),1/2NPT Cable entry
Protection Level	IP65
Explosion Proof	Exd II C T6 Gb Ex ia II C T4 Gb Ex Td A21 IP66 T80℃
Warranty period	12 months

FD3051 series intelligent capacitance transmitter is a high -precision, high stability, multi -parameter pressure/differential pressure measurement product,with HART protocol. The reliable explosion-proof structure design and standardized signal output, high accuracy and wide range, suitable for precision measurement of fluid pressure. Performing digital communication with HART375 Communicator, and electromagnetic radiation meets the IEC801 standard.
