| Measuring Range | 0-5kPa～260MPa（See model selection table） |
| Pressure Type | Gauge;Absolute;Negative pressure |
| Overload/Burst pressure | 150% F.S/200% F.S |
| Accuracy | 0.1%F.S 0.25%F.S 0.5%F.S |
| Long Stability | 0.1%F.S/year |
| Working Temperature | -20℃ ~80℃ |
| Power Supply | 12V～32VDC（Recommended 24VDC） |
| Output Signal | 4mA～20mADC,1V-5VDC,RS485 Optional |
| Communication Protocol | MODBUS RTU,HART |
| Electrical Connection | M20*1.5(F),1/2NPT Cable entry |
| Protection Level | IP65 |
| Explosion Proof | Exd II C T6 Gb Ex ia II C T4 Gb Ex Td A21 IP66 T80℃ |
| Warranty period | 12 months |

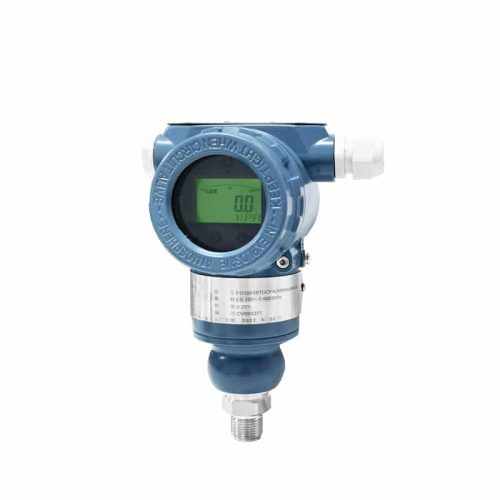

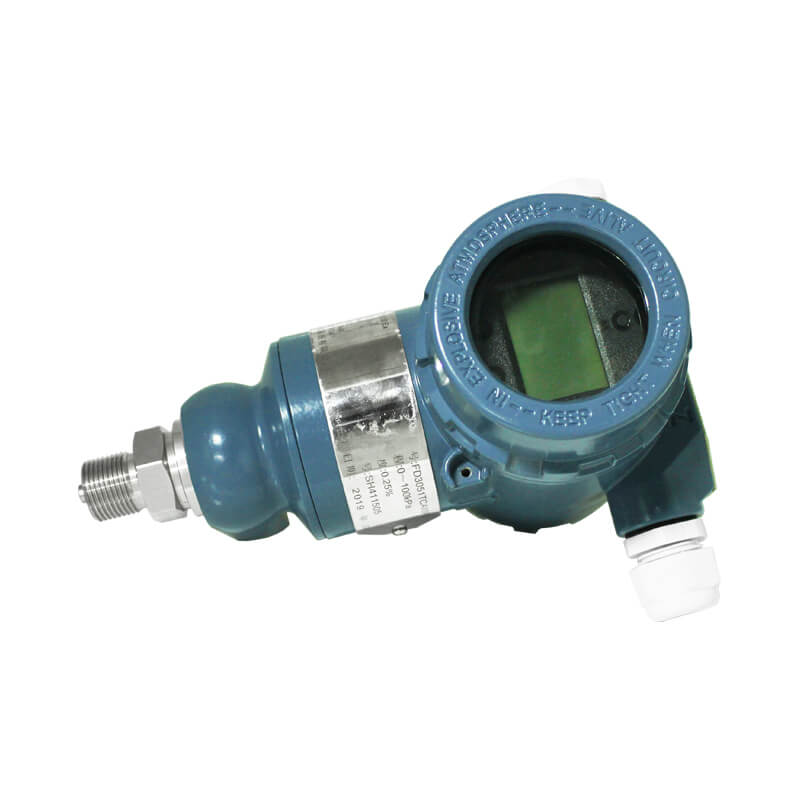

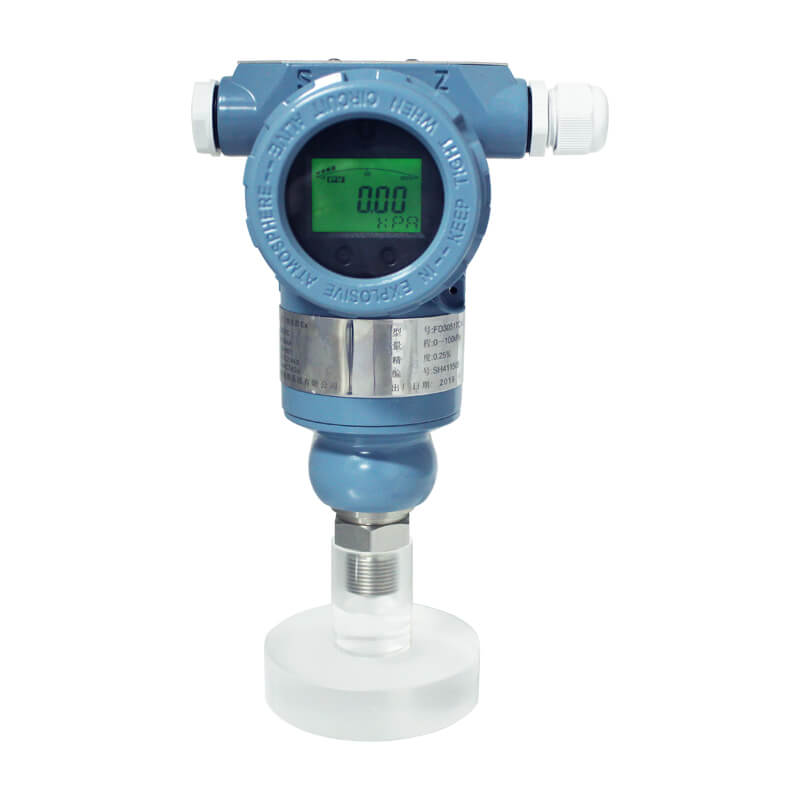

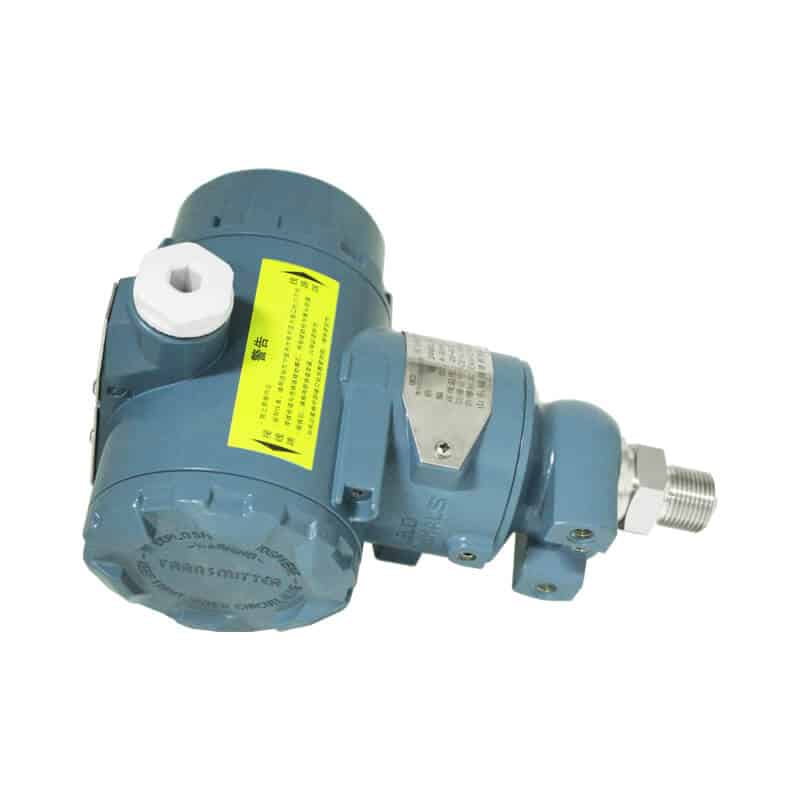

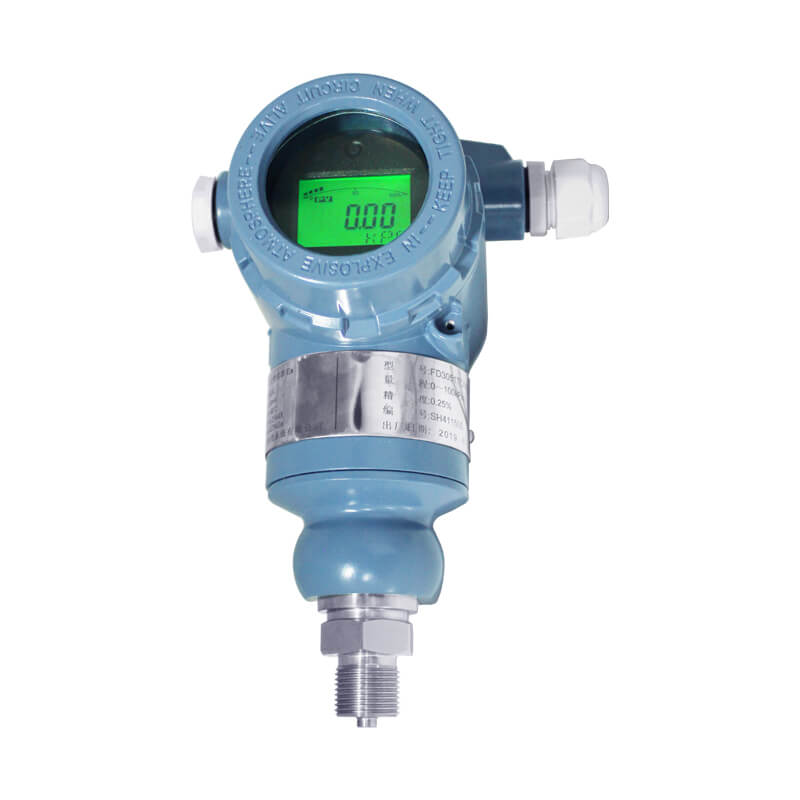

FD3051T series direct-mounted intelligent pressure transmitter is a high-precision, high-stability, multi-parameter pressure measurement,It is with HART protocol. It adopt the latest digital technology and combined with the international advanced piezoresistive pressure manufacturing technology,also with precise digital temperature compensation and nonlinear correction.The LCD display and standard signal output meet various observations in the field and control room. It has reliable explosion-proof structure design and standardized signal output, high precision, wide range coverage, suitable for precise measurement of fluid pressure.It can communicate with HART375 Communicator, and electromagnetic radiation meet IEC801 standard.
