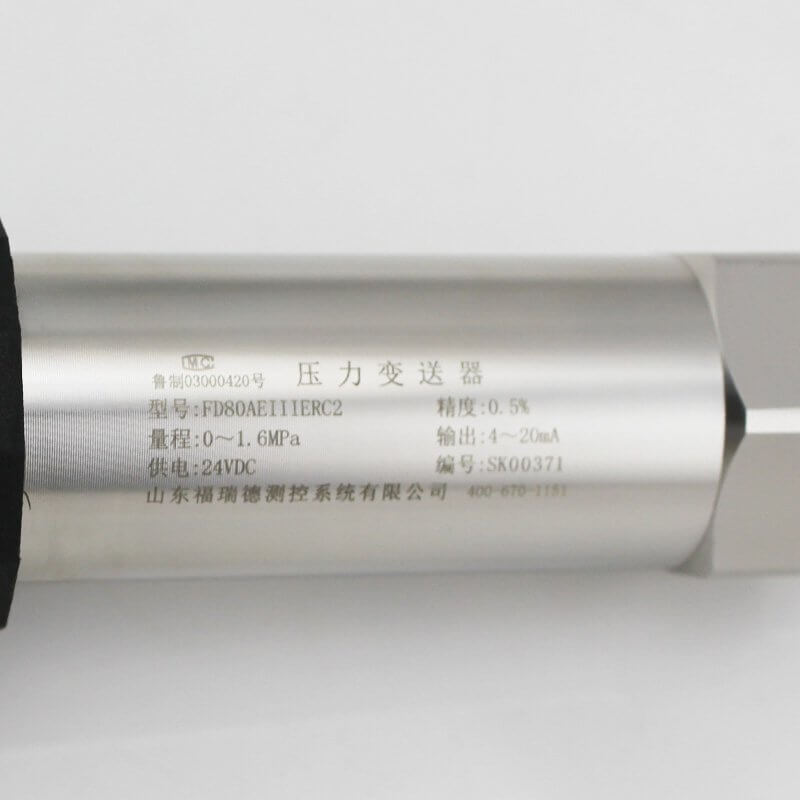

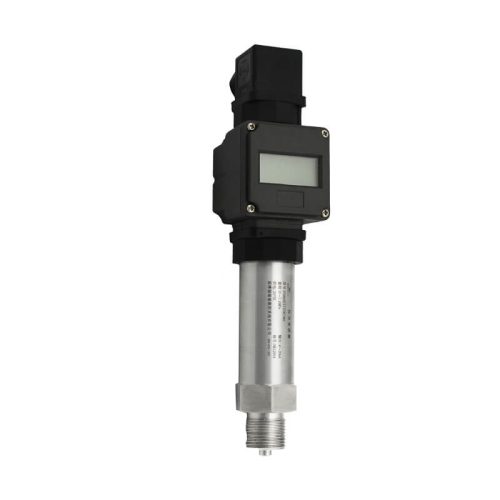

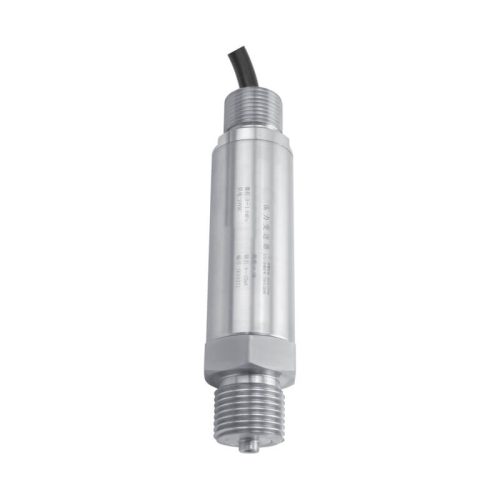

FD80A Compact Pressure Transmitter with Display

FD80A Compact Pressure Transmitter with Display

Product Feature
  • Wide measuring range,can measure gauge pressure, absolute pressure and negative pressure;
  • The sensor adopts digital compensation and nonlinear correction
  • IP65 protection design,suitable for field,open air and other harsh environments

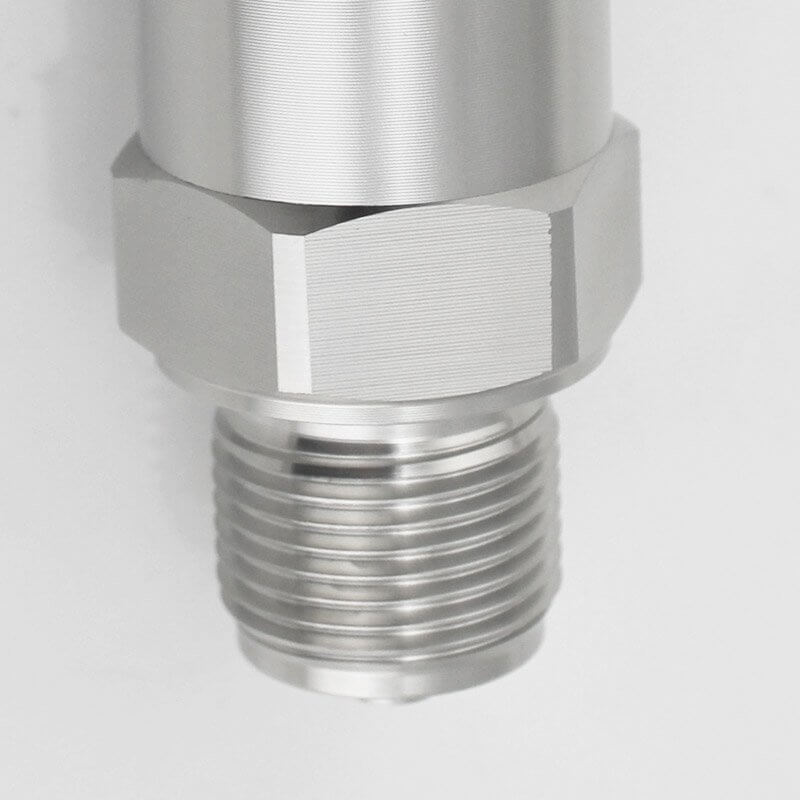

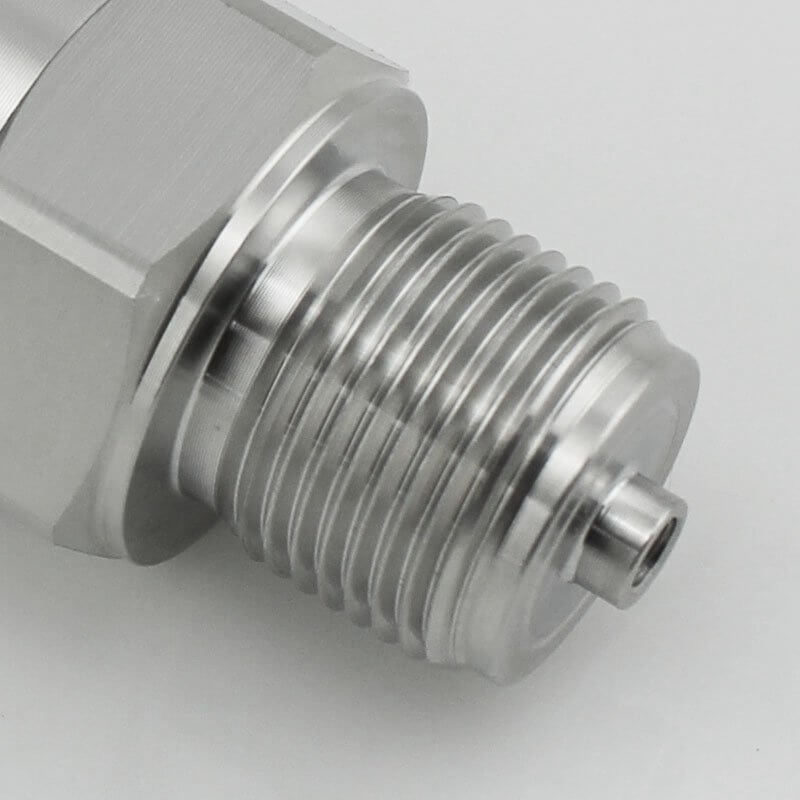

  • All stainless steel structure,various pressure process connection
  • Meet the requirements of GB3836 standard and with explosion-proof certificate

Measuring Range0-5kPa~260MPa(See model selection table)
Pressure TypeGauge;Absolute;Negative pressure
Overload/Burst pressure150% F.S/200% F.S
Accuracy0.25%F.S 0.5%F.S
Long Stability0.2%F.S/year
Working Temperature-20℃ ~70℃
Power Supply16V~28VDC(Recommended 24VDC)
Output Signal4mA~20mADC,1V-5VDC,RS485 Optional
Communication ProtocolMODBUS RTU,HART

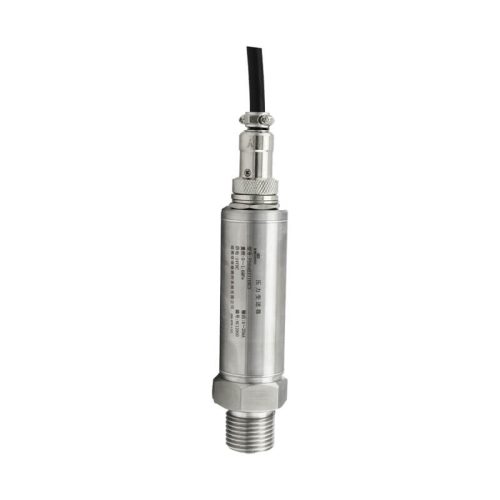

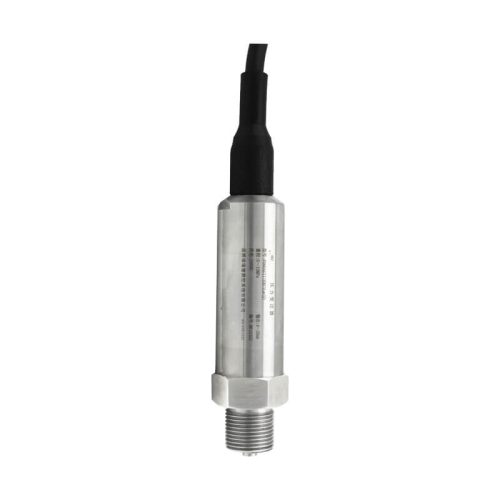

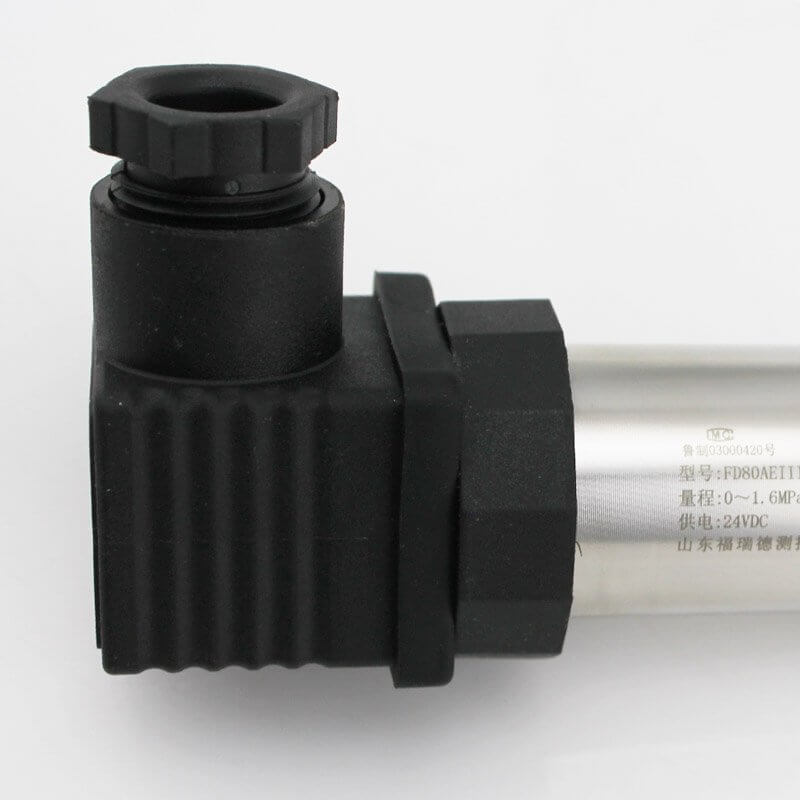

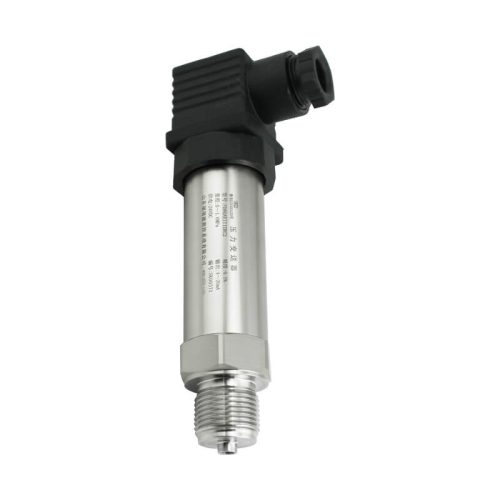

Electrical ConnectionGDM Hirschmann,Aviation Connectors,Direct lead,IP68 Cable
Protection LevelIP65,IP68
Explosion ProofExd II C T6 Gb Ex ia II C T4 Gb Ex Td A21 IP66 T80℃
Warranty period12 months

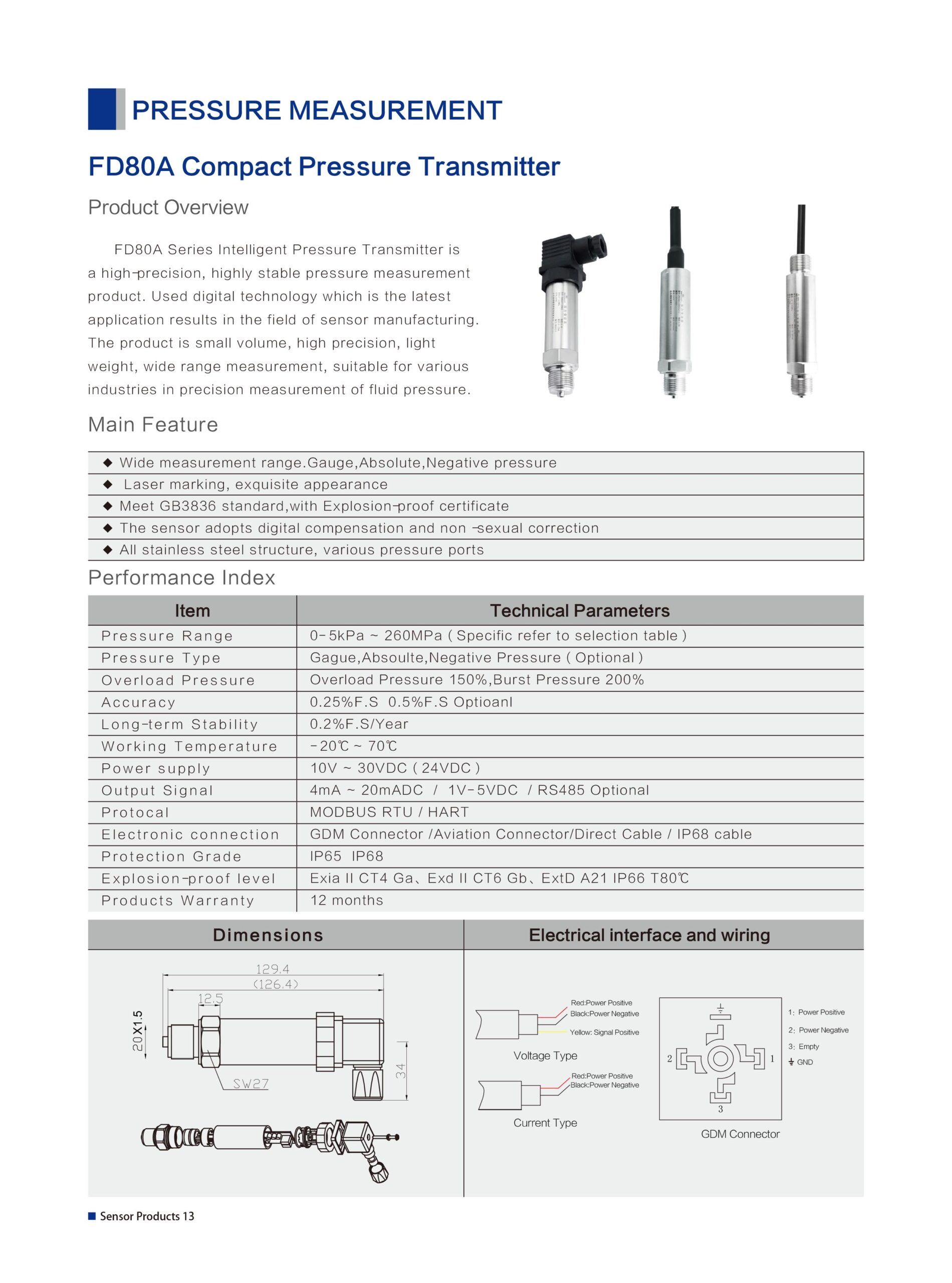

FD80A Series Intelligent Pressure Transmitter is a high-precision, highly stable pressure measurement product. Used digital technology which is the latest application results in the field of sensor manufacturing. The product is small volume, high precision, light weight, wide range measurement, suitable for various industries in precision measurement of fluid pressure.
