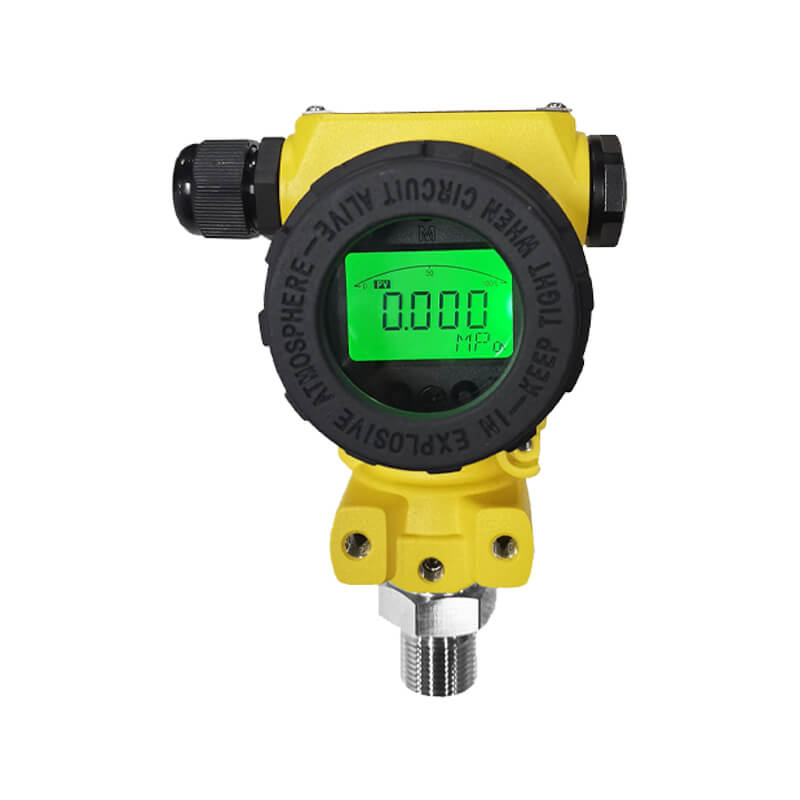

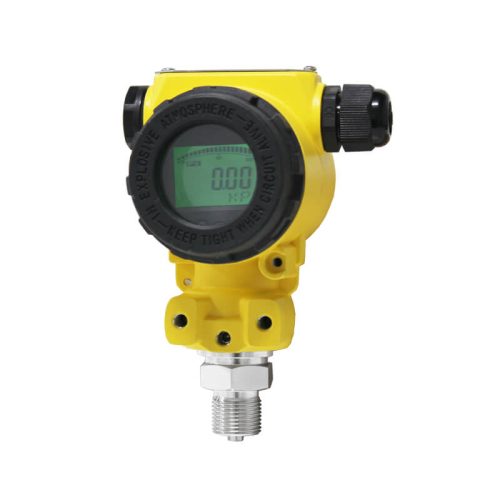

FD80B Universal Pressure Transmitter

Product Feature
  • Wide measuring range,can measure gauge pressure, absolute pressure and negative pressure;
  • The sensor adopts digital compensation and nonlinear correction
  • IP65 protection design,suitable for field,open air and other harsh environments
  • Laser marking nameplate,the appearance is exquisite and meticulous
  • Meet the requirements of GB3836 standard and with explosion-proof certificate.
  • Digital circuit design,on-site button key reset

Inquiry of Product

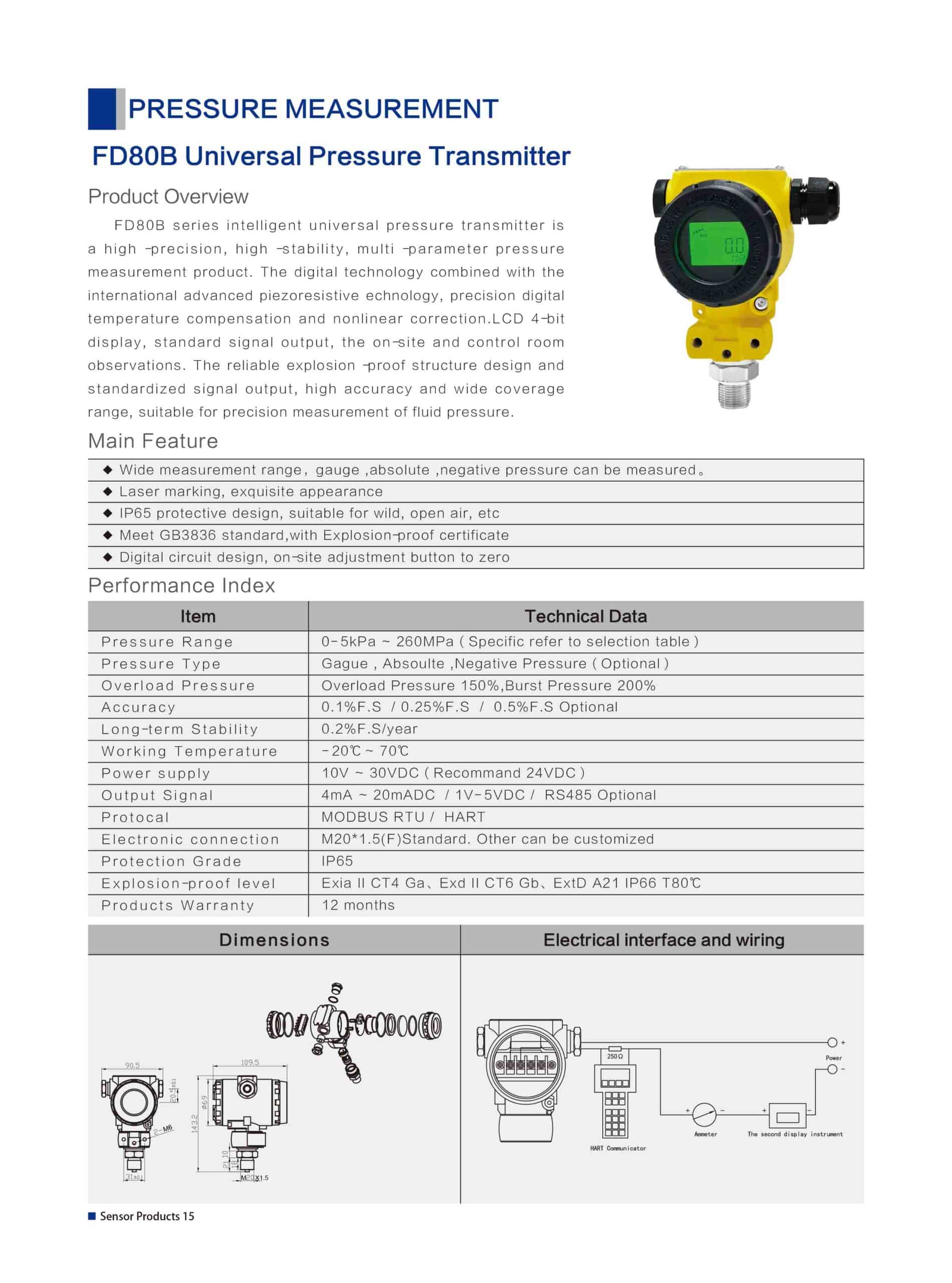

PDF Download
  • Share:
  • Follow Us:
Facebook Twitter Linkedin Youtube Weixin Whatsapp
DFD80B4
DFD80B3
DFD80B2
DFD80B1
Measuring Range0-5kPa～260MPa（See model selection table）
Pressure TypeGauge;Absolute;Negative pressure
Overload/Burst pressure150% F.S/200% F.S
Accuracy0.1%F.S 0.25%F.S 0.5%F.S
Long Stability0.2%F.S/year
Working Temperature-20℃ ~70℃
Power Supply12V～28VDC（Recommended 24VDC）
Output Signal4mA～20mADC,1V-5VDC,RS485 Optional
Communication ProtocolMODBUS RTU,HART
Electrical ConnectionM20*1.5(F) Cable entry，1/2NPT
Protection LevelIP65
Explosion ProofExd II C T6 Gb Ex ia II C T4 Gb Ex Td A21 IP66 T80℃
Warranty period12 months

FD80B Series Universal pressure transmitter adopt high performance pressure sensor with high precision,accurate digital intelligent circuit board.Products is stable and reliable,with full welding structure,fiber making,shape choiceness beauty.
