| Measuring Range | 0-0.6MPa～4MPa |
| Pressure Type | Gauge |
| Overload/Burst pressure | 150% F.S/200% F.S |
| Accuracy | 0.5%F.S |
| Long Stability | 0.5%F.S/year |
| Working Temperature | 0℃ ~50℃ |
| Power Supply | 18V～30VDC（Recommended 24VDC） |
| Output Signal | 4mA～20mADC |
| Protection Level | IP65 |
| Warranty period | 12 months |

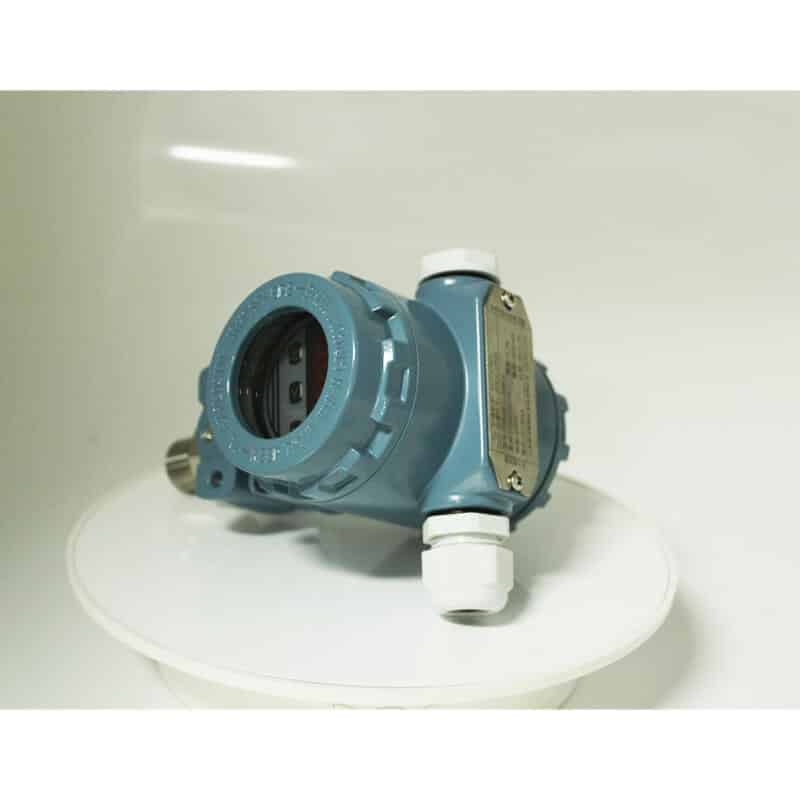

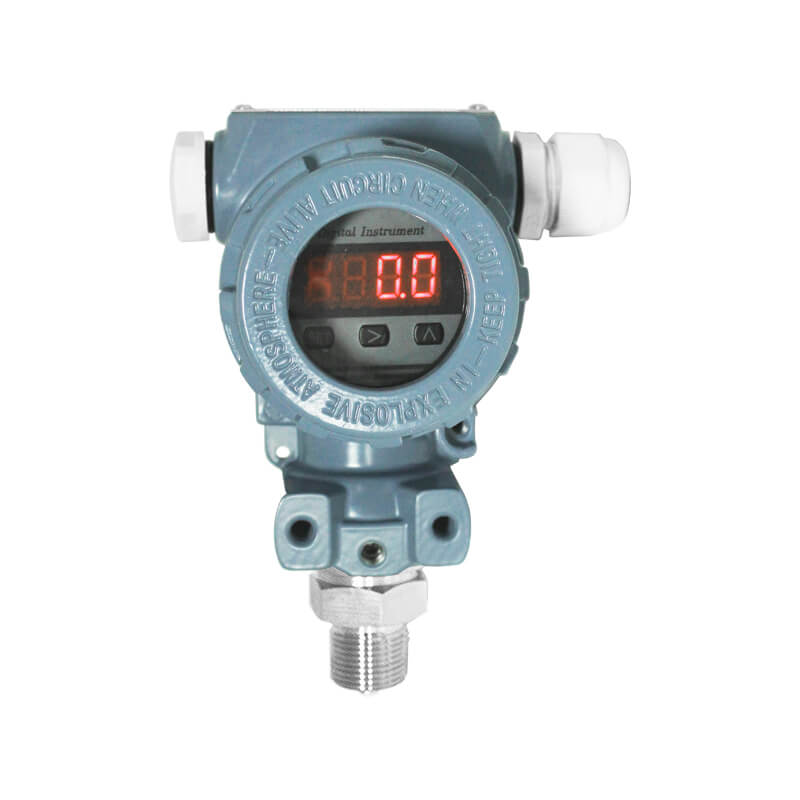

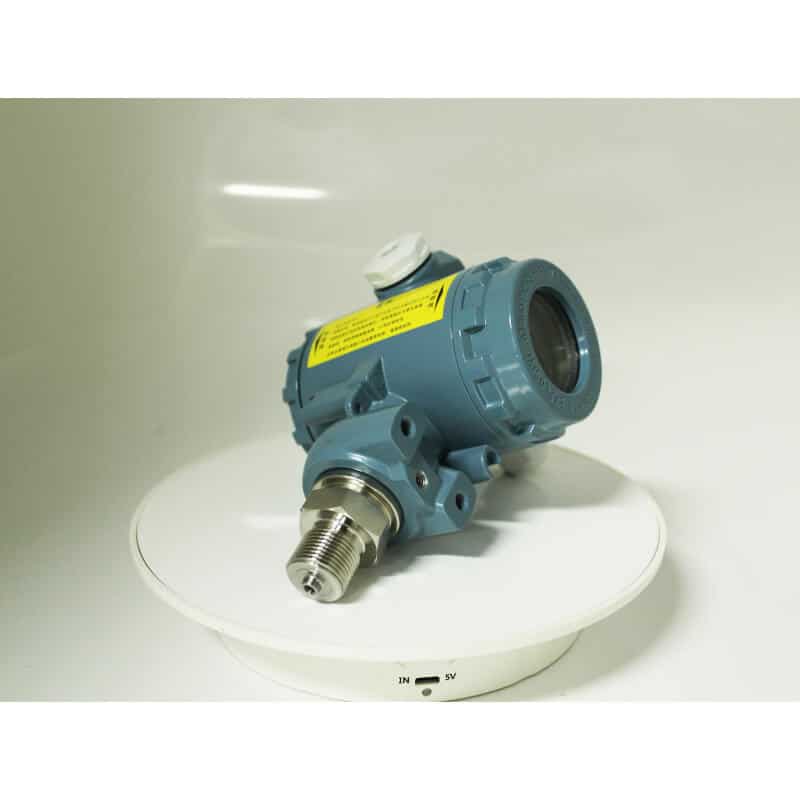

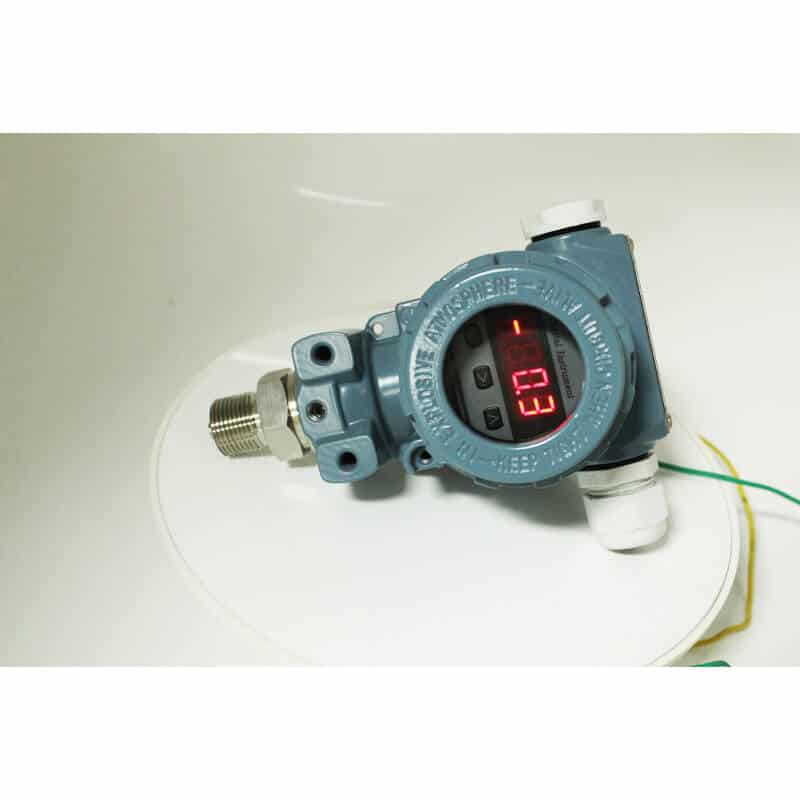

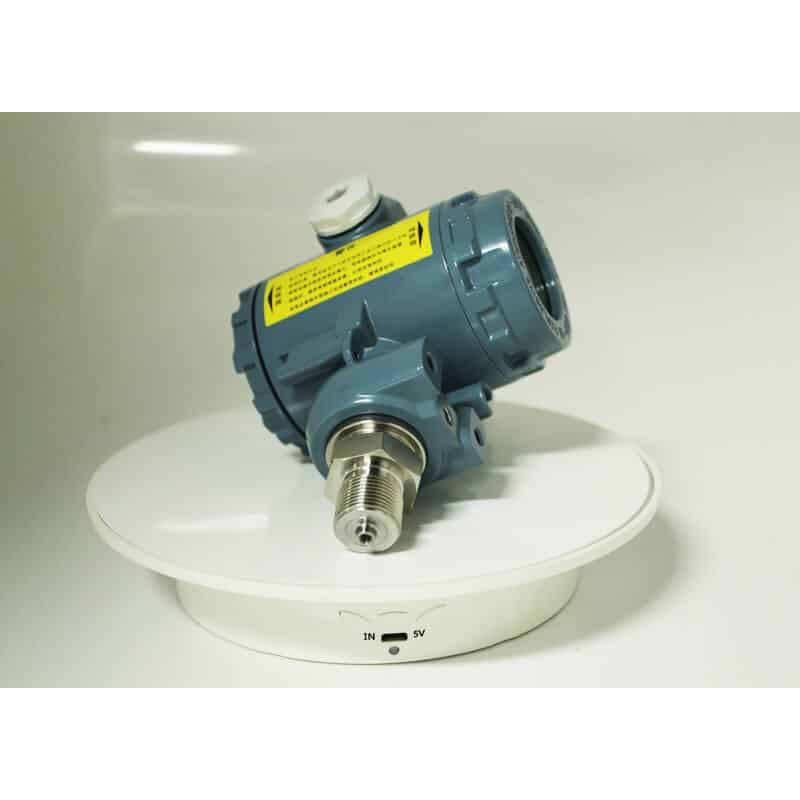

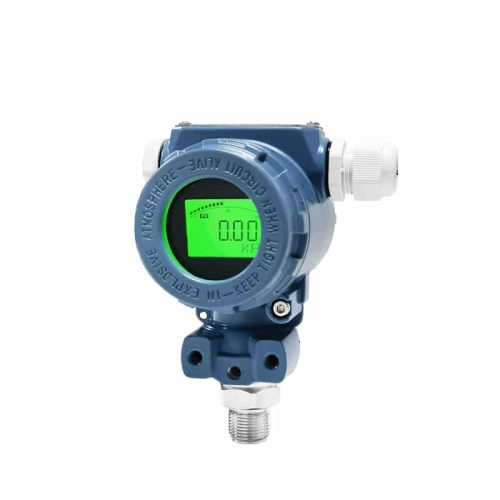

FD80D/FD80E series economical pressure transmitter is a high stability pressure measurement product.It adopt the latest digital technology and combined with the international advanced piezoresistive pressure manufacturing technology,also with precise digital temperature compensation and nonlinear correction.The LCD display and standard signal output meet various observations in the field and control room. It has reliable explosion-proof structure design and standardized signal output, high precision, wide range coverage, suitable for precise measurement of fluid pressure.It can communicate with HART375 Communicator, and electromagnetic radiation meet IEC801 standard.
