- 4-digital LED displays the current pressure value, no display value error
- Max 5 switching point
- The control point can be set arbitrarily between zero point and full point
- Site key setting,easy to operate
- 4-20mA,RS485 optional
FD80W Intelligent Pressure Controller
- Home
- Products
- FD80W Intelligent Pressure Controller

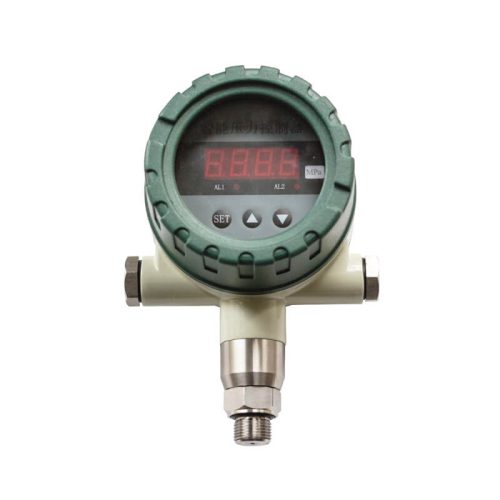

FD80W Intelligent Pressure Controller
Product Feature
- Categories:
- Pressure Switch Controller
- Share:
| Measuring Range | 0- 5kPa～100MPa（Specific refer to selection table） |
| Pressure Type | Gauge;Absolute;Negative pressure |
| Overload/Burst pressure | 150% F.S/200% F.S |
| Accuracy | 0.25%F.S 0.5%F.S |
| Long Stability | 0.2%F.S/year |
| Working Temperature | -20℃ ~70℃ |
| Power Supply | 16V～28VDC（Recommended 24VDC） |
| Output Signal | 4mA～20mADC / Relay output 1V- 5VDC / RS485 Optional |
| Communication Protocol | MODBUS RTU |
| Electrical Connection | M20*1.5(F),1/2NPT |
| Protection Level | IP65 |
| Explosion Proof | Exd II C T6 Gb Ex ia II C T4 Gb Ex Td A21 IP66 T80℃ |
| Warranty period | 12 months |
This is an intelligent digital displayed product for pressure test and controll. It has a complete electronic structure.Oil-filled piezo-restive pressure sensor with diaphragm is applied in the front part. The processed signals control two switches then to test & control the pressure. With flexible application, easy debugging and high reliability,this product is widely used applied to test & control the pressure of fluid medium in many industries including areas of hydroelectricity,citwater,oil,chemical,machinery hydraulic system etc.
