◆ Simple design,stable working,and easy maintenance
◆ Various installation methods, flexible connection
◆ The indicating is completely isolated from the display,with good sealing performance
◆ The measurement range is large and is not limited by the height of the storage tank
◆ Corrosion resistance, high temperature resistance, suitable for various harsh environments
◆ It can also be equipped with remote transmitter, switch alarm and other detection functions
FD86-UHZ Magnetic Level Gauge
- Home
- Products
- FD86-UHZ Magnetic Level Gauge

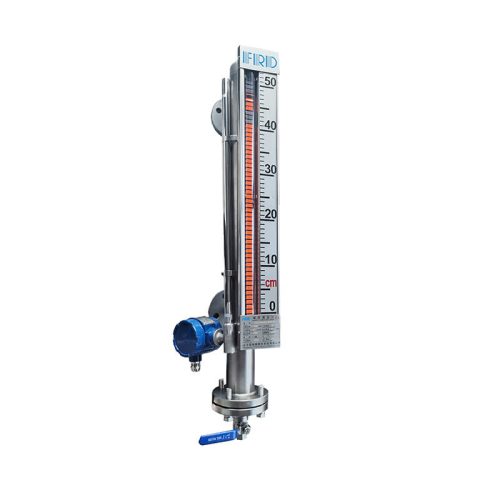

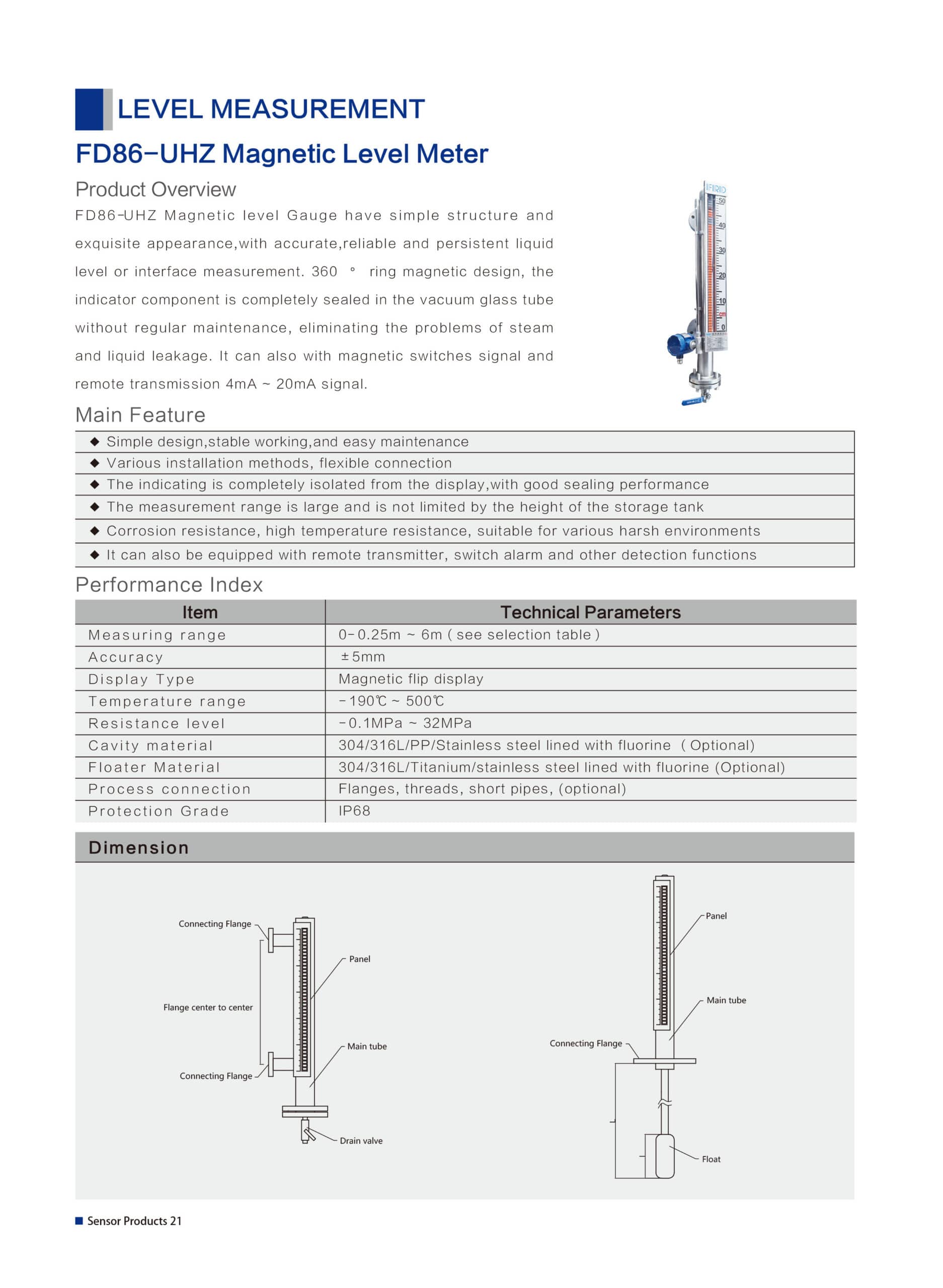

FD86-UHZ Magnetic Level Gauge
Product Feature
- Categories:
- Magnetic Level Gauge
- Share:
| Measuring Range | 0- 0.25m～6m（see selection table） |
| Accuracy | ±5mm |
| Display Type | Magnetic flip display |
| Temperature range | – 190℃～500℃ |
| Resistance level | – 0.1MPa～32MPa |
| Cavity material | 304/316L/PP/Stainless steel lined with fluorine （Optional) |
| Floater Material | 304/316L/Titanium/stainless steel lined with fluorine (Optional) |
| Process connection | Flanges, threads, short pipes, (optional) |
| Protection Grade | IP68 |
FD86-UHZ Magnetic level Gauge have simple structure and exquisite appearance,with accurate,reliable and persistent liquid level or interface measurement. 360°ring magnetic design, the indicator component is completely sealed in the vacuum glass tube without regular maintenance, eliminating the problems of steam and liquid leakage. It can also with magnetic switches signal and remote transmission 4mA ~ 20mA signal.
