FD86G Anti-Corrosion Level Transmitter
Product Feature
- Categories:
- Industrial Level Transmitter
- Share:
| Measuring Range | 0- 1m～200mH2O（See selection table） |
| Overload Ability | Overload Pressure：150% F.S Burst Pressure :200% F.S |
| Overload/Burst pressure | 150% F.S/200% F.S |
| Accuracy | 0.25%F.S 0.5%F.S Optional |
| Long Stability | 0.2%F.S/year |
| Working Temperature | – 10℃～60℃ |
| Power Supply | 16V～28VDC（Recommend 24VDC） |
| Output Signal | 4mA～20mADC 1V- 5VDC RS485 Optional |
| Communication Protocol | MODBUS RTU,HART |
| Electrical Connection | M20*1.5(F),1/2NPT |
| Protection Level | IP65（Housing） IP68（Sensor） |
| Warranty period | 12 months |

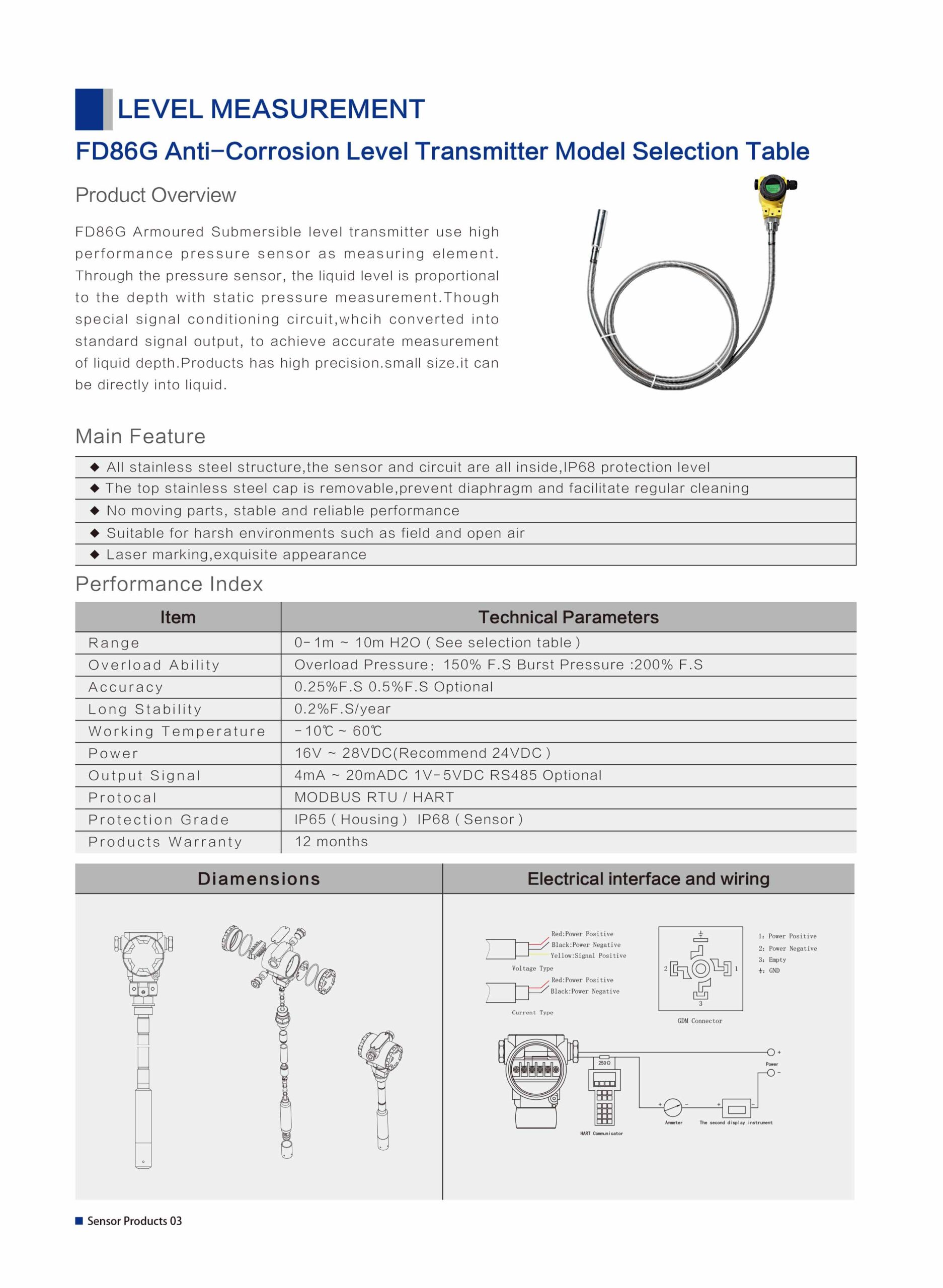

FD86G Armoured Submersible level transmitter use high performance pressure sensor as measuring element.Through the pressure sensor, the liquid level is proportional to the depth with static pressure measurement.Though special signal conditioning circuit,whcih converted into standard signal output, to achieve accurate measurement of liquid depth.Products has high precision.small size.it can be directly into liquid.
