- The antenna size is small and easy to install. Non-contact radar is no wear,without pollution.
- Dust, harsh environments have little effect on the work of high-frequency radar.
- No eccect from corrosion,foam;No eccect from steam, temperature and pressure in the atmosphere
- Short wavelength and small beam, achieve better signal reflection and avoid interference
- The measurement blind area is smaller, and it will also good for small tank liquid level measurement
FD86R Radar Level Transmitter
- Home
- Products
- FD86R Radar Level Transmitter

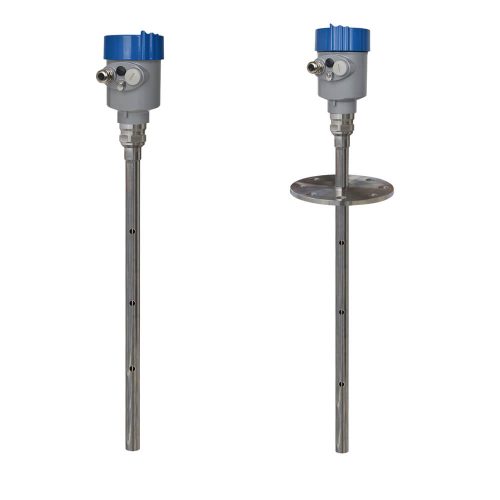

FD86R Radar Level Transmitter
Product Feature
- Categories:
- Radar Level Transmitter
- Share:
| Measuring Range | 0- 5m～80mH2O（See selection table） |
| Accuracy | 0.25%F.S 0.5%F.S. Optional |
| Long Stability | 0.2%F.S/year |
| Medium Temperature | – 40℃～130℃；- 40℃～250℃ |
| Process Pressure | – 0.1MPa～2Mpaï¼›- 0.1MPa～4Mpa |
| Power | 16V～28VDC（Recommend 24VDC）；220VDC |
| Output signal | 4mA～20mADC RS485 Optional |
| Protocol | MODBUS RTU, HART |
| Protection class | IP65 |
| Products Warranty | 12 months |

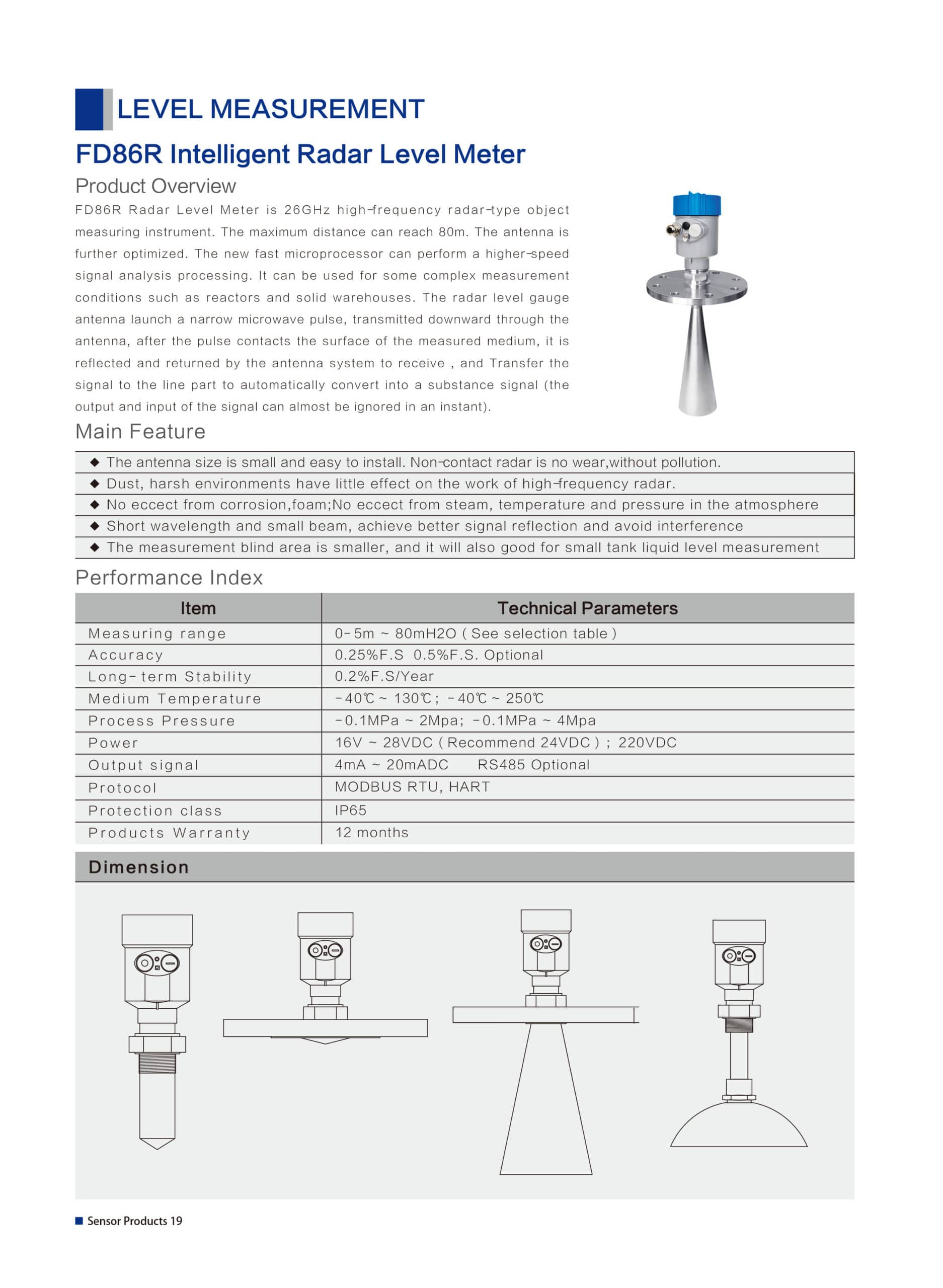

FD86R Radar Level Meter is 26GHz high-frequency radar-type object measuring instrument. The maximum distance can reach 80m. The antenna is further optimized. The new fast microprocessor can perform a higher-speed signal analysis processing. It can be used for some complex measurement conditions such as reactors and solid warehouses. The radar level gauge antenna launch a narrow microwave pulse, transmitted downward through the antenna, after the pulse contacts the surface of the measured medium, it is reflected and returned by the antenna system to receive , and Transfer the signal to the line part to automatically convert into a substance signal (the output and input of the signal can almost be ignored in an instant).
