| Measuring Range | – 200℃~ 600℃（Resistance sensor） |
| Accuracy | 0.25%FS |
| Insulation resistance | 0≥100MΩ （15℃~35℃，RH≤80%） |
| Power Supply | 12V DC ~ 30V DC、220V AC |
| Output Signal | 4mA ~ 20mA DC、1V DC ~ 5V DC、switch signal |
| Communication Protocol | RS458 |
| Probe Length | 100mm ~ 10000mm |
| Probe Diameter | φ3,φ4,φ6 ,φ12,φ16 |
| Probe Material | SS304,SS316,HG3039,SS lined with PTFE |
| Wiring | Side outlet, rear wiring, explosion-proof type, etc. |
| Installation Method | Fixed thread type,flange type,etc. |

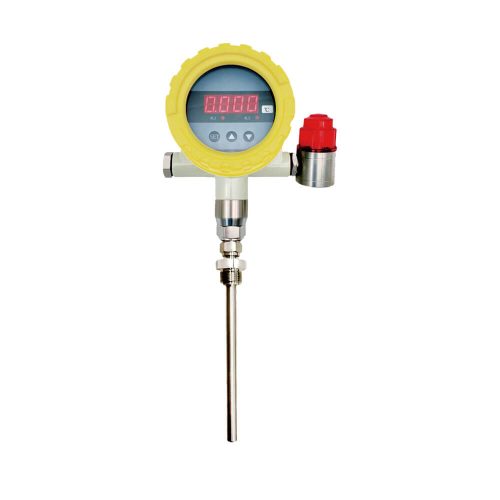

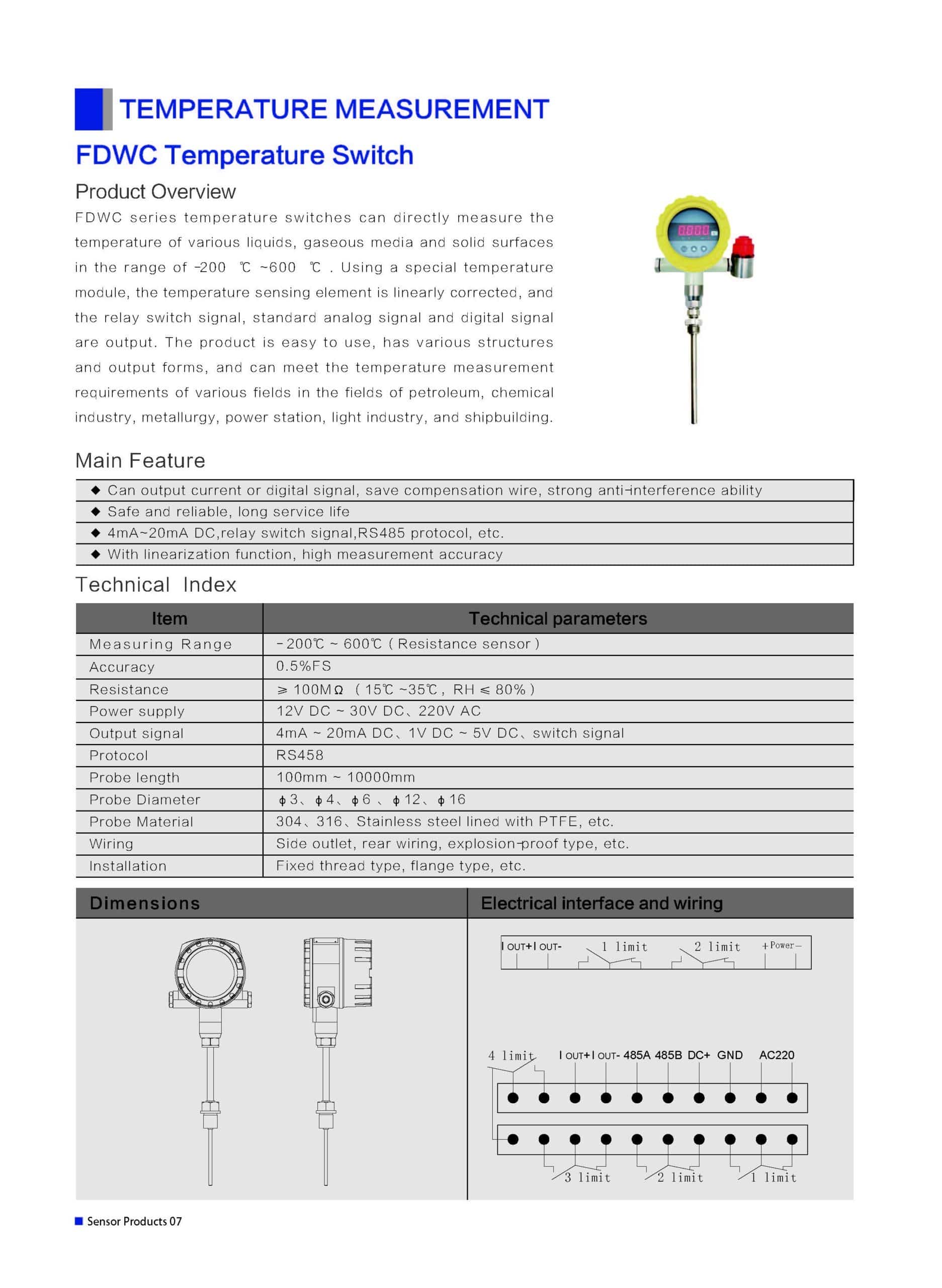

FDWC series temperature switches can directly measure the temperature of various liquids, gaseous media and solid surfaces in the range of -200℃~600℃. Using a special temperature module, the temperature sensing element is linearly corrected, and the relay switch signal, standard analog signal and digital signal are output. The product is easy to use, has various structures and output forms, and can meet the temperature measurement requirements of various fields in the fields of petroleum, chemical industry, metallurgy, power station, light industry, and shipbuilding.
Output current or digital signals, save compensation wires, and have strong anti-interference ability Safe and
Output current or digital signals, save compensation wires, and have strong anti-interference ability Safe and
Output current or digital signals, save compensation wires, and have strong anti-interference ability Safe and
