| Measuring Range | 0-5kPa～260MPa（See model selection table） |
| Pressure Type | Gauge;Absolute;Negative pressure |
| Overload/Burst pressure | 150% F.S/200% F.S |
| Accuracy | 0.25%F.S 0.5%F.S |
| Long Stability | 0.2%F.S/year |
| Working Temperature | -20℃ ~70℃ |
| Power Supply | 16V～28VDC（Recommended 24VDC） |
| Output Signal | 4mA～20mADC,1V-5VDC,RS485 Optional |
| Communication Protocol | MODBUS RTU,HART |
| Electrical Connection | GDM Hirschmann,Aviation Connectors,Direct lead,IP68 Cable |
| Protection Level | IP65,IP68 |
| Explosion Proof | Exd II C T6 Gb Ex ia II C T4 Gb Ex Td A21 IP66 T80℃ |
| Warranty period | 12 months |

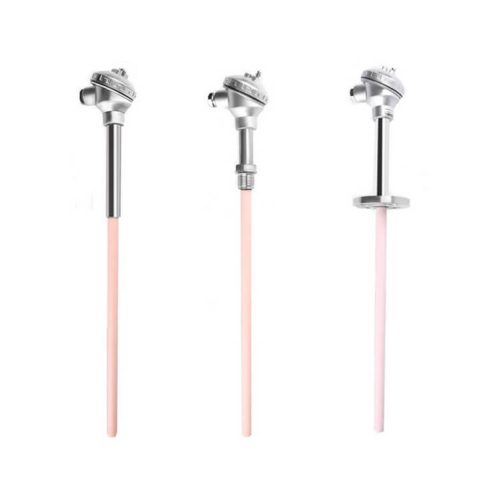

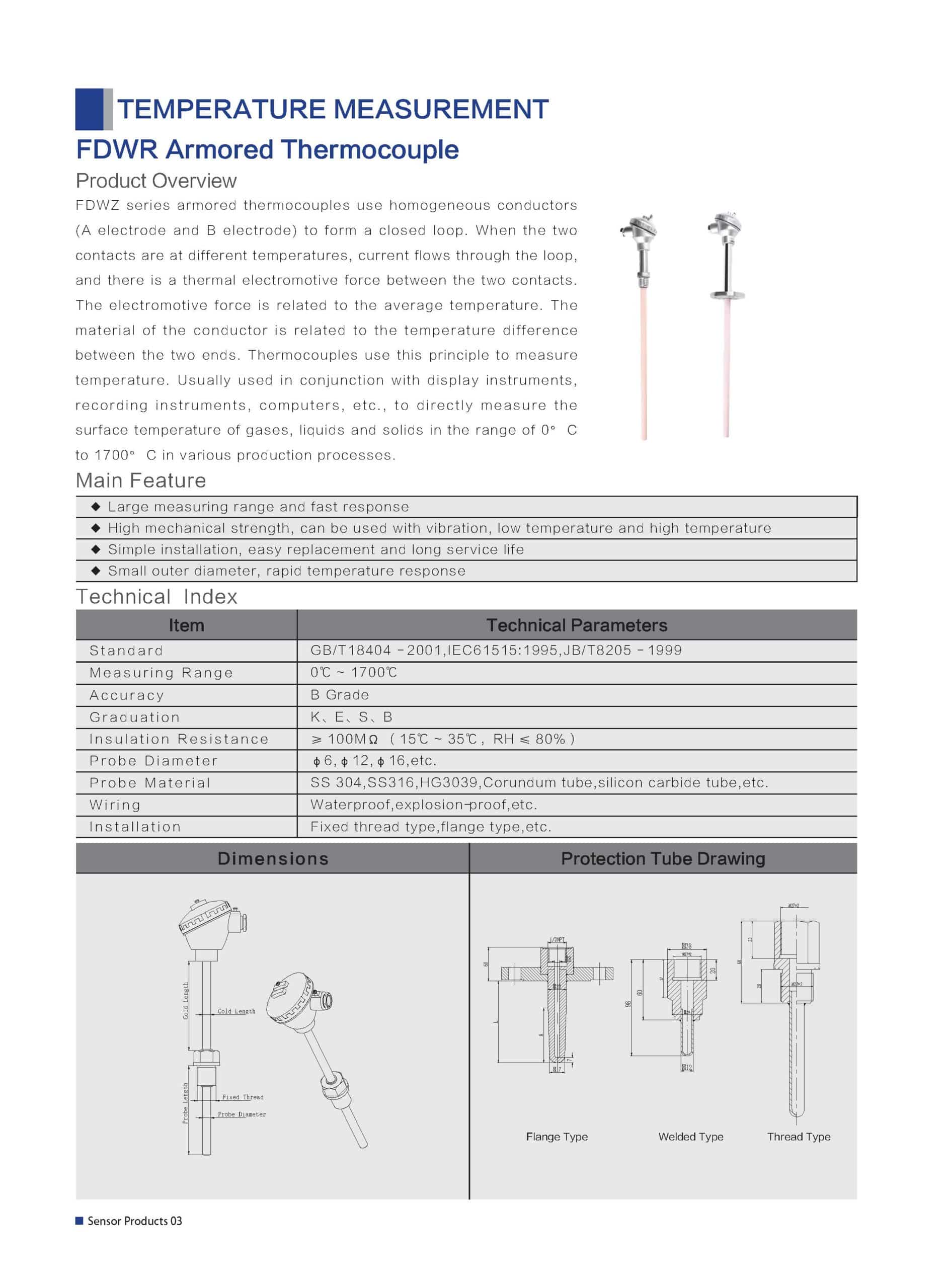

FDWR series armored thermocouples use homogeneous conductors (A electrode and B electrode) to form a closed loop. When the two contacts are at different temperatures, current flows through the loop, and there is a thermal electromotive force between the two contacts. The electromotive force is related to the average temperature. The material of the conductor is related to the temperature difference between the two ends. Thermocouples use this principle to measure temperature. Usually used in conjunction with display instruments, recording instruments, computers, etc., to directly measure the surface temperature of gases, liquids and solids in the range of 0°C to 1700°C in various production processes.
Fast response time, reducing dynamic error High mechanical strength, good pressure resistance Flexible installation High
