- On-site temperature display, intuitive and convenient
- Safe and reliable, long service life
- Variety of structural forms to meet the requirements of different occasions
FDWSS Temperature Gauge
- Home
- Products
- FDWSS Temperature Gauge

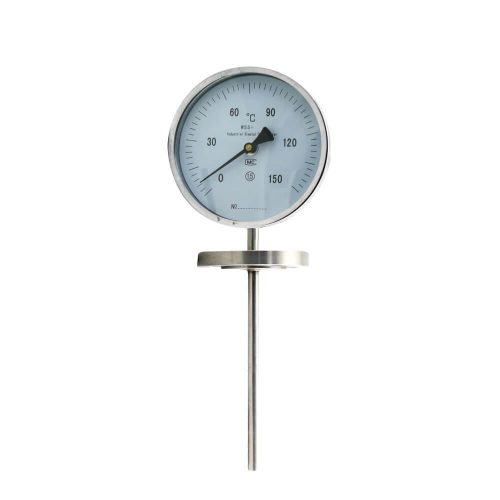

FDWSS Temperature Gauge
Product Feature
- Categories:
- Industrial Temperature Gauge
- Share:
| Measuring Range | – 80℃~ 40℃,- 40℃~ 80℃,0℃~ 200℃,0℃~ 500℃.etc (optional) |
| Accuracy | 1.0、1.5（Optional） |
| Response time | ≤40s |
| Ambient temperature | – 40℃~ 80℃（open field） |
| Probe length | 100mm ~ 2000mm |
| Protection tube diameter | φ6 、φ12、φ16 |
| Probe Length | 100mm ~ 10000mm |
| Protection tube material | SS304,SS316,SS lined with PTFE, etc |
| Dial Diameter | φ60、φ100、φ150 |
| Dial Direction | Axial type,Radial type,Adjustable type |
| Installation | Threaded,flanged,etc |
FDWSS series bimetal thermometers are based on bimetallic sheets wound into a ring shape. When one end is heated and expanded, it drives the pointer to select, and the working instrument displays the temperature value corresponding to the thermoelectric potential, which can directly measure various liquid and gas media. and the temperature of the solid surface. The product is easy to use and has various structural forms, which can meet the temperature measurement requirements of various fields in the fields of petroleum, chemical industry, metallurgy, power station, light industry, and shipbuilding.
