| Measuring Range | 0-5kPa～260MPa（See model selection table） |
| Pressure Type | Gauge;Absolute;Negative pressure |
| Overload/Burst pressure | 150% F.S/200% F.S |
| Accuracy | 0.25%F.S 0.5%F.S |
| Long Stability | 0.2%F.S/year |
| Working Temperature | -20℃ ~70℃ |
| Power Supply | 16V～28VDC（Recommended 24VDC） |
| Output Signal | 4mA～20mADC,1V-5VDC,RS485 Optional |
| Communication Protocol | MODBUS RTU,HART |
| Electrical Connection | GDM Hirschmann,Aviation Connectors,Direct lead,IP68 Cable |
| Protection Level | IP65,IP68 |
| Explosion Proof | Exd II C T6 Gb Ex ia II C T4 Gb Ex Td A21 IP66 T80℃ |
| Warranty period | 12 months |

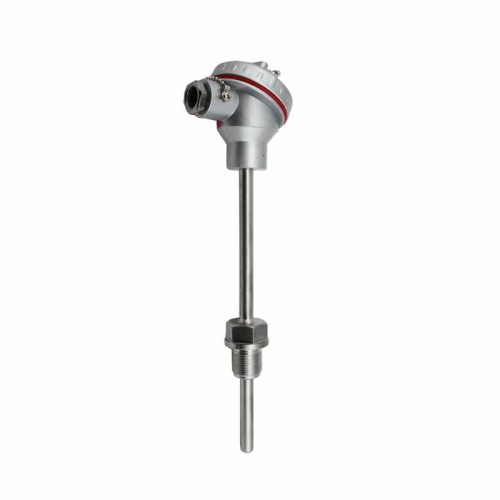

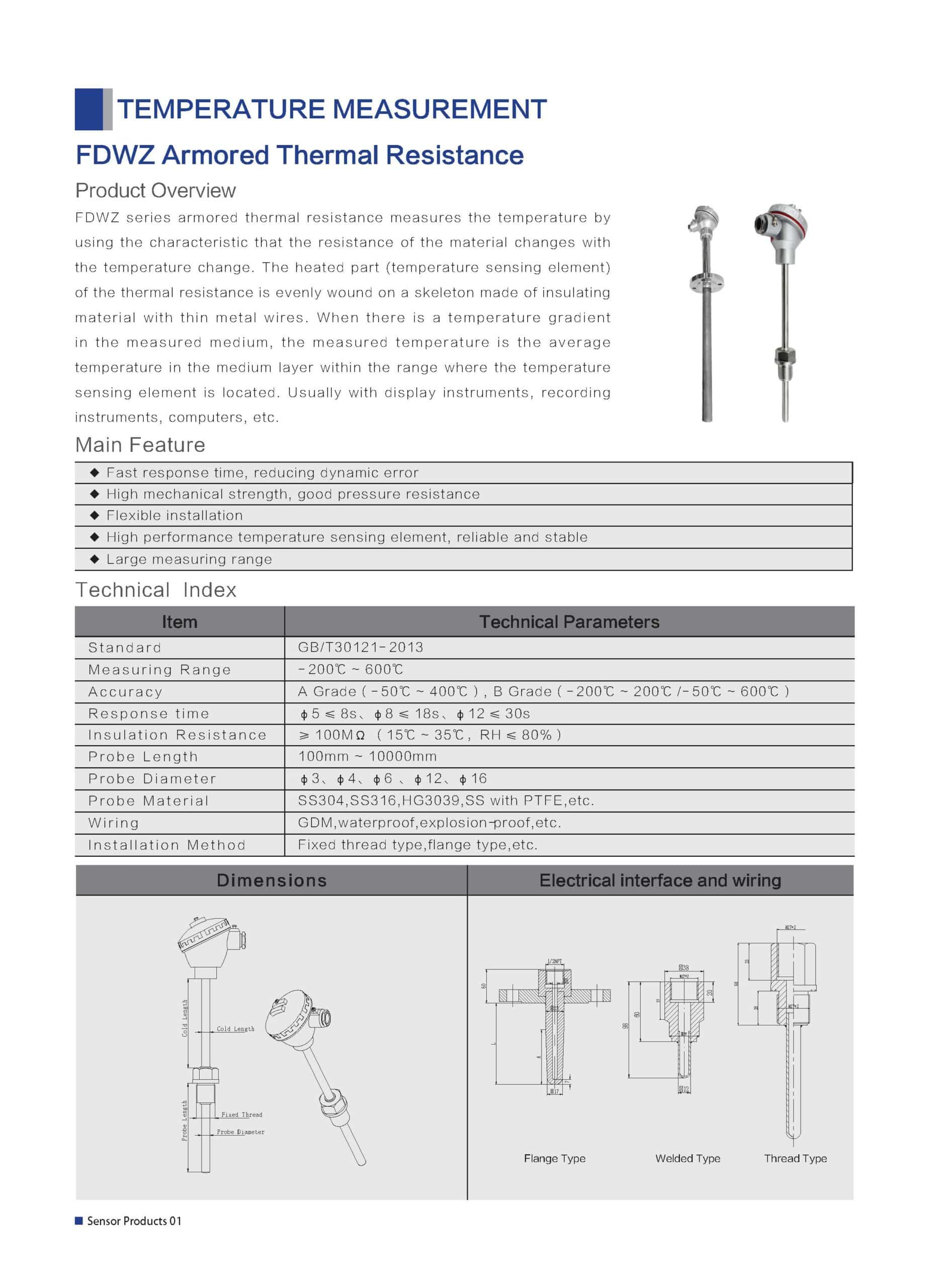

FDWZ series armored thermal resistance measures the temperature by using the characteristic that the resistance of the material changes with the temperature change. The heated part (temperature sensing element) of the thermal resistance is evenly wound on a skeleton made of insulating material with thin metal wires. When there is a temperature gradient in the measured medium, the measured temperature is the average temperature in the medium layer within the range where the temperature sensing element is located. Usually with display instruments, recording instruments, computers, etc.
TWO wire 4-20mA,Save compensation wire,High anti-interference ability. Linearization function,Automatic compensation for cold. Safe and reliable
