| Full Range | 6KPa、40KPa、250KPa、3MPa |
| Rated Working Pressure | 16MPa、25MPa、40MPa |
| Power | Constant voltage, constant current |
| Medium Temperature | -50℃ ~125℃ |
| Working Temperature | -40℃ ~85℃ |
| Output Voltage | 60mV~140mV |
| Zero point drift effect | ±0.05%F.S./℃ |
| Full scale temp effect | -0.2±0.03%F.S./℃ |
| Temperature Hysteresis | ＜±0.05%F.S. |
| Pressure Hysteresis | ＜±0.025%F.S. |

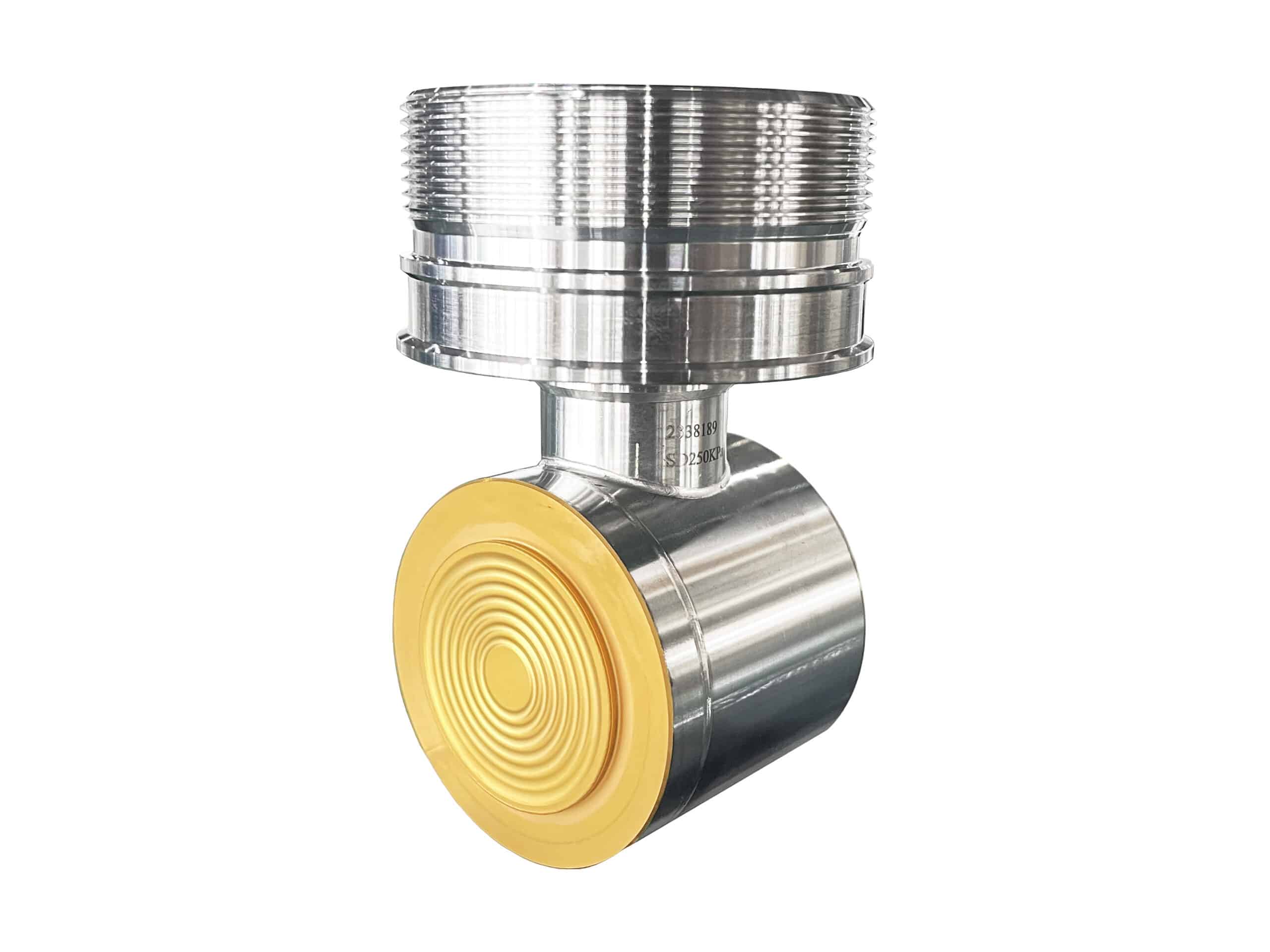

| Diaphragm | Hastelloy C, tantalum, SS316L gold plated |
| Thread Connection | M56×1.5/G55-16/M27×2 |

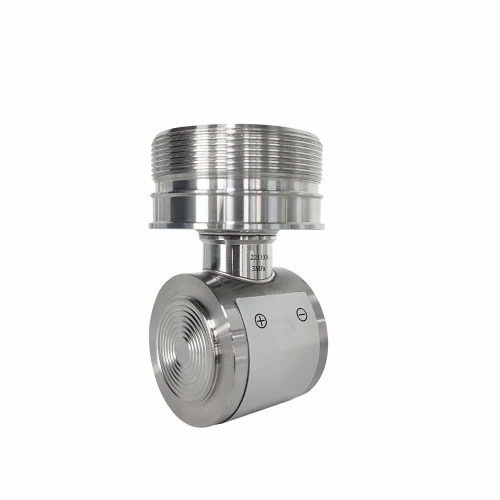

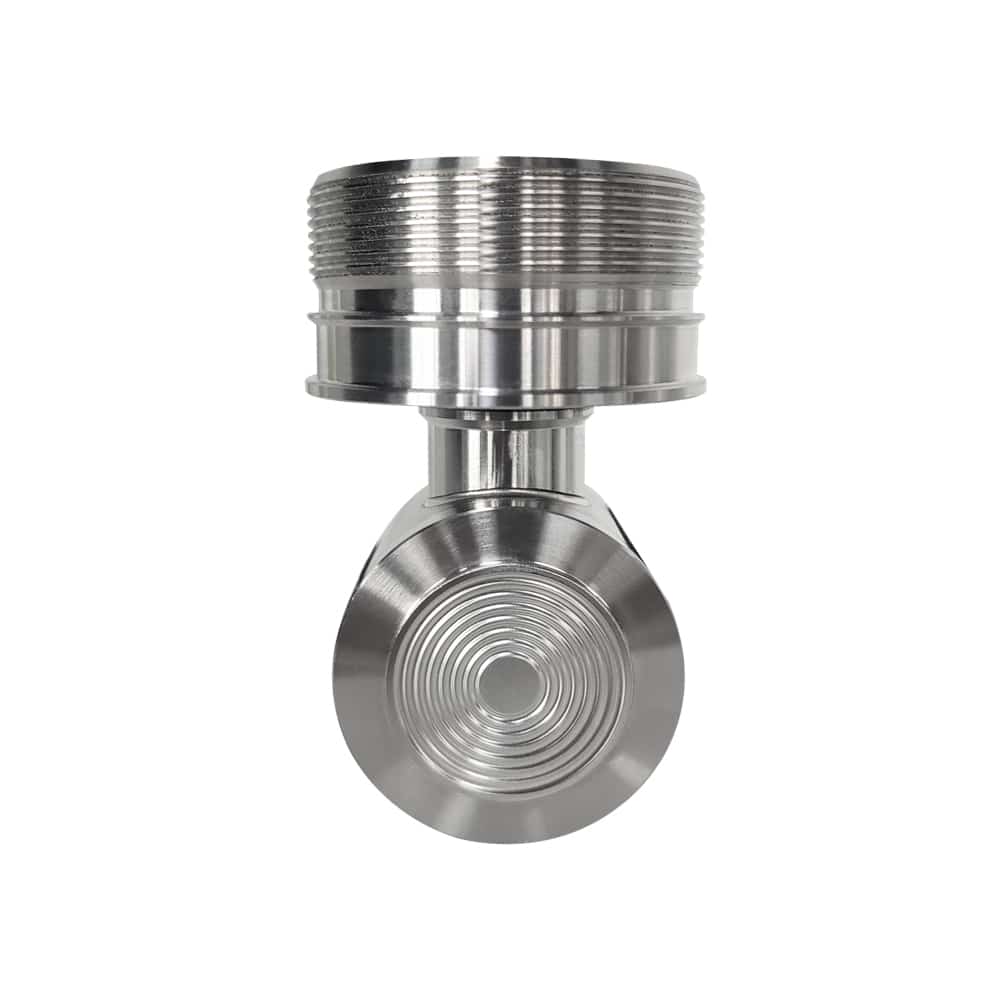

The HS51 high-precision differential pressure core adopts a high-stable chip imported from Germany, which has the characteristics of high precision and high stability. It has a built-in temperature sensitive element,which can greatly improve the temperature performance of the monocrystalline silicon pressure core. It is entirely made of 316L stainless steel and has a fully welded structure. It has excellent overload performance and a wide temperature range.
