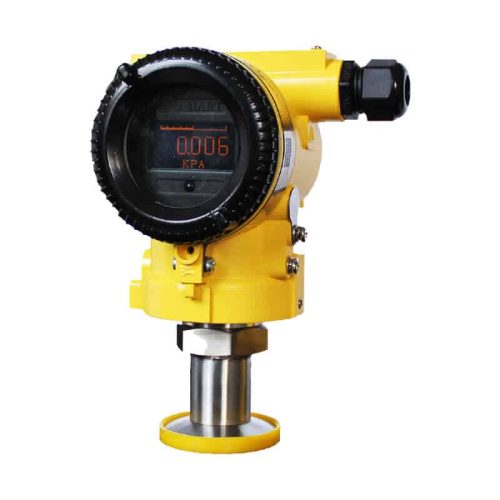

FD3051S FG/FA Pressure Transmitter

Product Feature
  • Wide measuring range,can measure gauge pressure, absolute pressure and negative pressure;
  • The sensor adopts digital compensation and nonlinear correction
  • IP65 protection design,suitable for field,open air and other harsh environments
  • Laser marking nameplate,the appearance is exquisite and meticulous
  • Meet the requirements of GB3836 standard and with explosion-proof certificate.
  • Digital circuit design,on-site button key reset
  • High temperature resistance,up to 180 ℃
  • Flat membrane structure,meet 3-A sanitary standard

Inquiry of Product
PDF Download
  • Share:
  • Follow Us:
Facebook Twitter Linkedin Youtube Weixin Whatsapp
Measuring Range0-5kPa～3MPa（See model selection table）
Pressure TypeGauge;Absolute;Negative pressure
Overload/Burst pressure150% F.S/200% F.S
Accuracy0.1%F.S 0.25%F.S 0.5%F.S
Long Stability0.2%F.S/year
Working Temperature-20℃ ~70℃,-20℃ ~150℃,-20℃ ~180℃
Power Supply16V～28VDC（Recommended 24VDC）
Output Signal4mA～20mADC,1V-5VDC,RS485 Optional
Communication ProtocolMODBUS RTU,HART
Electrical ConnectionM20*1.5(F) Cable entry
Protection LevelIP65
Explosion ProofExd II C T6 Gb Ex ia II C T4 Gb Ex Td A21 IP66 T80℃
Warranty period12 months

FD3051S FG/FA Intelligent sanitary pressure transmitter is specially designed for sanitary applications .It adopts high performance pressure sensor,matched with a high – precision intelligent amplifying circuit,accurate digital correction;full welding structure,meet the standard of 3 – A sanitary grade.
