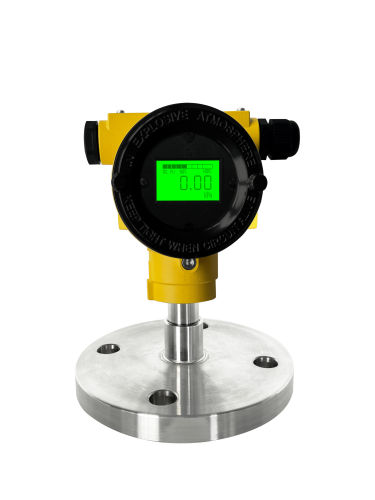

FD3051S 直装

FD3051S LG/LA Remote Seal Pressure Transmitter

Product Feature
  • nominal pressure: 0 … 100 mbar up to 0 … 400 bar
  • accuracy: 0.05 % FSO BFSL (class 0.05)
  • modular sensor concept
  • e measuring range,can measure gauge pressure, absolute pressure and negative pressure;
  • The sensor adopts digital compensation and nonlinear correction
  • IP65 protection design,suitable for field,open air and other harsh environments
  • Laser marking nameplate,the appearance is exquisite and meticulous
  • Meet the requirements of GB3836 standard and with explosion-proof certificate.
  • Digital circuit design,on-site button key reset
  • The whole sealing surface, with strong corrosion resistance

Inquiry of Product
PDF Download
  • Share:
  • Follow Us:
Facebook Twitter Linkedin Youtube Weixin Whatsapp

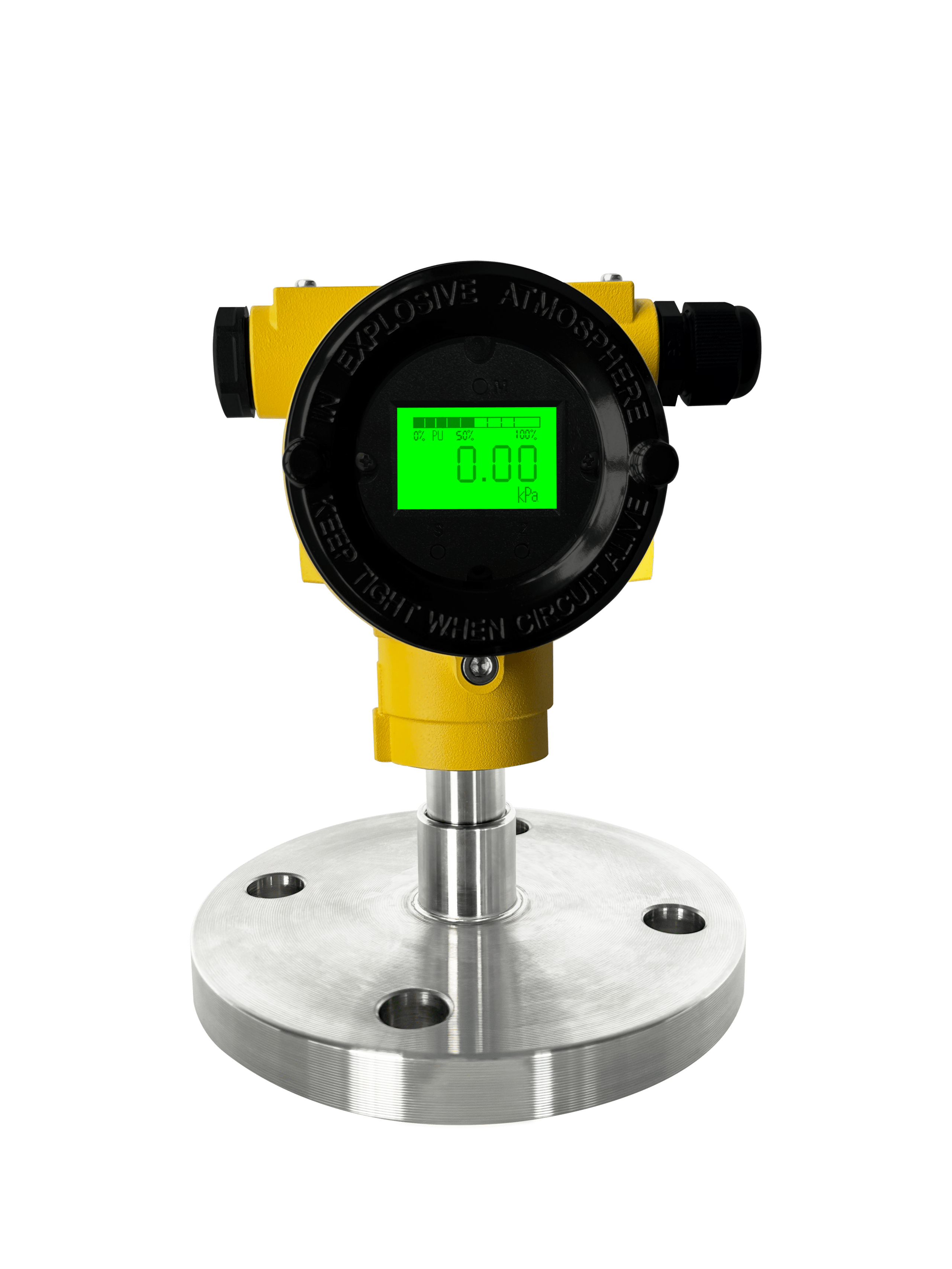

FD3051S 直装

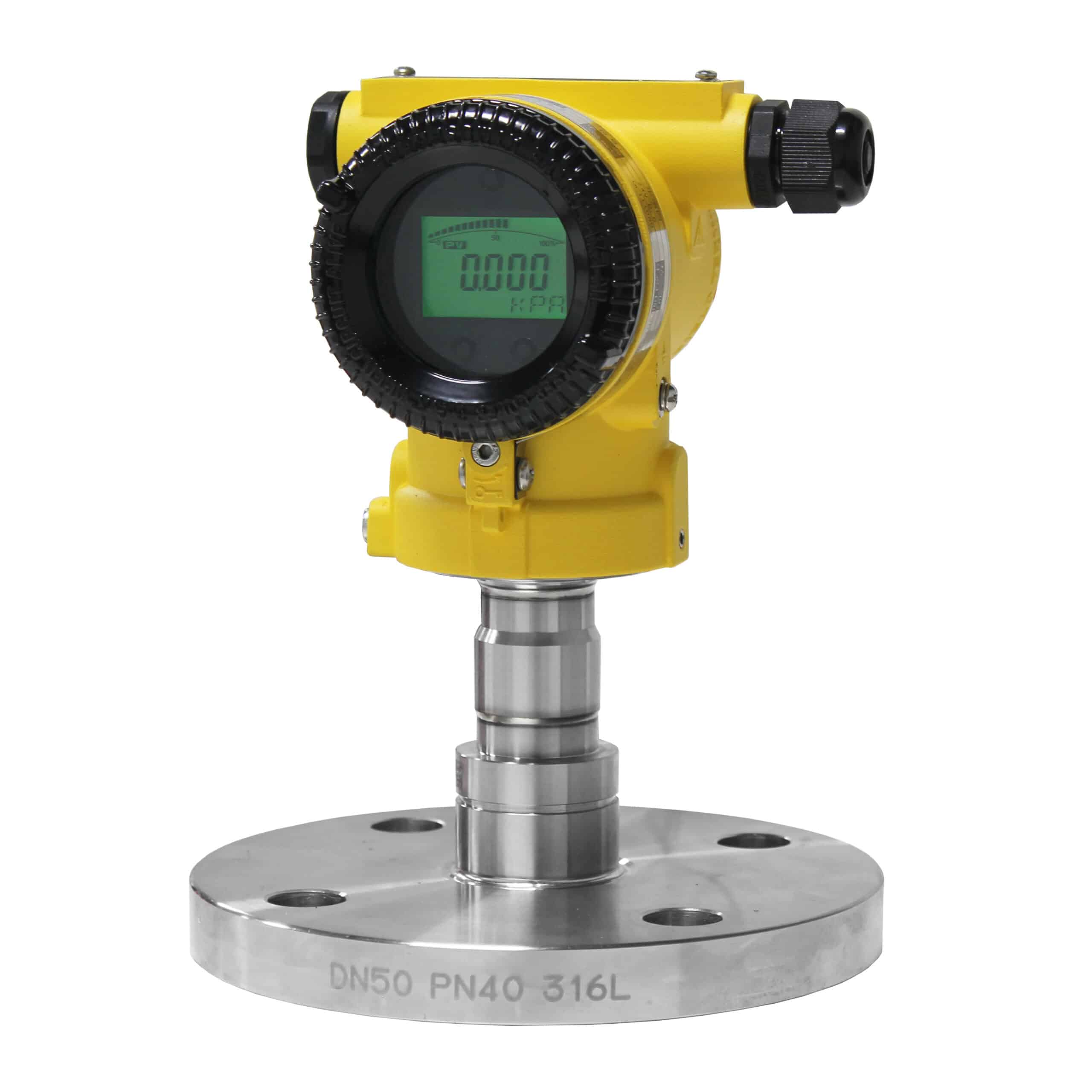

FD3051SLG1

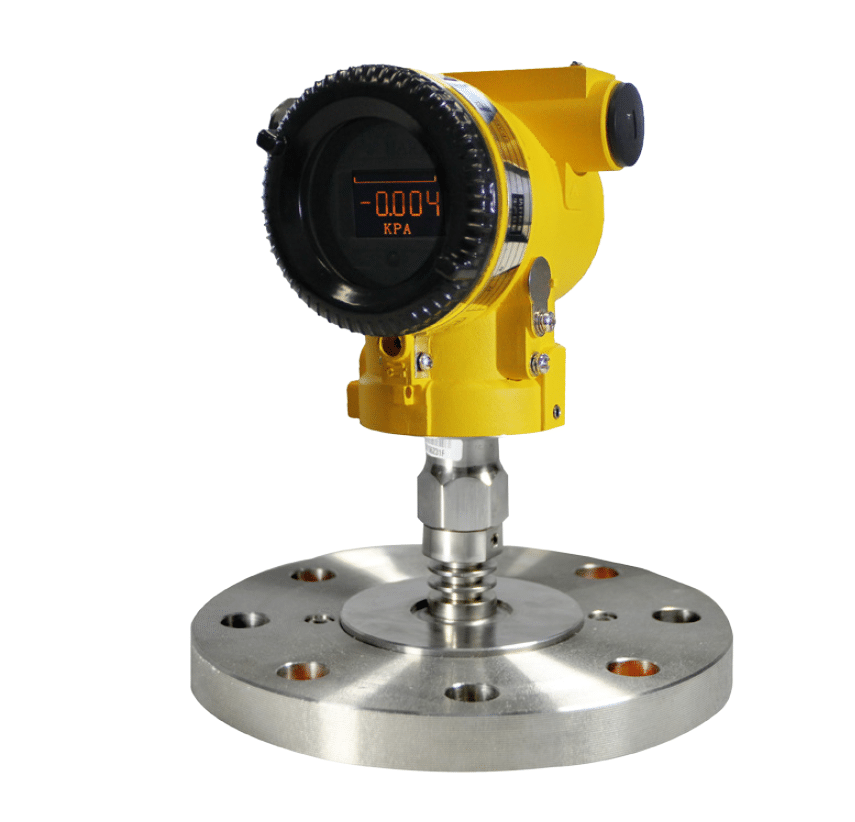

FD3051SLG3
Measuring Range0-5kPa～10MPa（See model selection table）
Pressure TypeGauge;Absolute;Negative pressure(Optional)
Range ratio40:1
Accuracy0.1%F.S,0.25%F.S,0.5%F.S,
Long Stability0.2%F.S/year
Medium Temperature-40℃～200℃,0℃～300℃ Optional
Power Supply10V～30VDC（Recommended 24VDC）
Output Signal4mA～20mADC,1V-5VDC,RS485 Optional
Communication ProtocolMODBUS RTU,HART
Electrical ConnectionM20*1.5(F),1/2NPT Cable entry
Protection LevelIP65
Explosion ProofExd II C T6 Gb Ex ia II C T4 Gb Ex Td A21 IP66 T80℃
Warranty period12 months

FD3051S LG/LA pressure transmitter is suitable to measure liquid, gas, or steam flow as well as liquidlevel, density and pressure. FD3051S outputs a 4~20mADC signal corresponding to the measured pressure. The key features include quick response,remote set-up using communications,self-diagnostics and optional status output for pressure high/low alarm.
