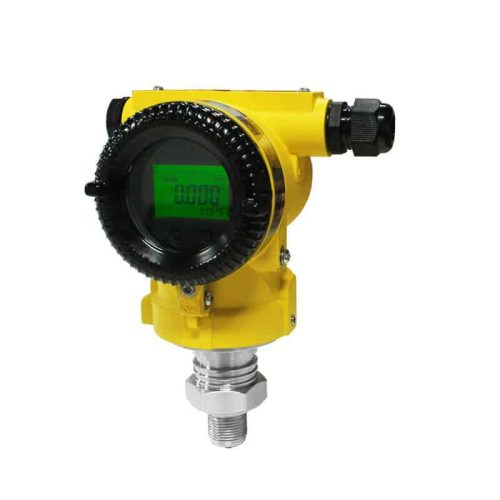

FD3051STG1

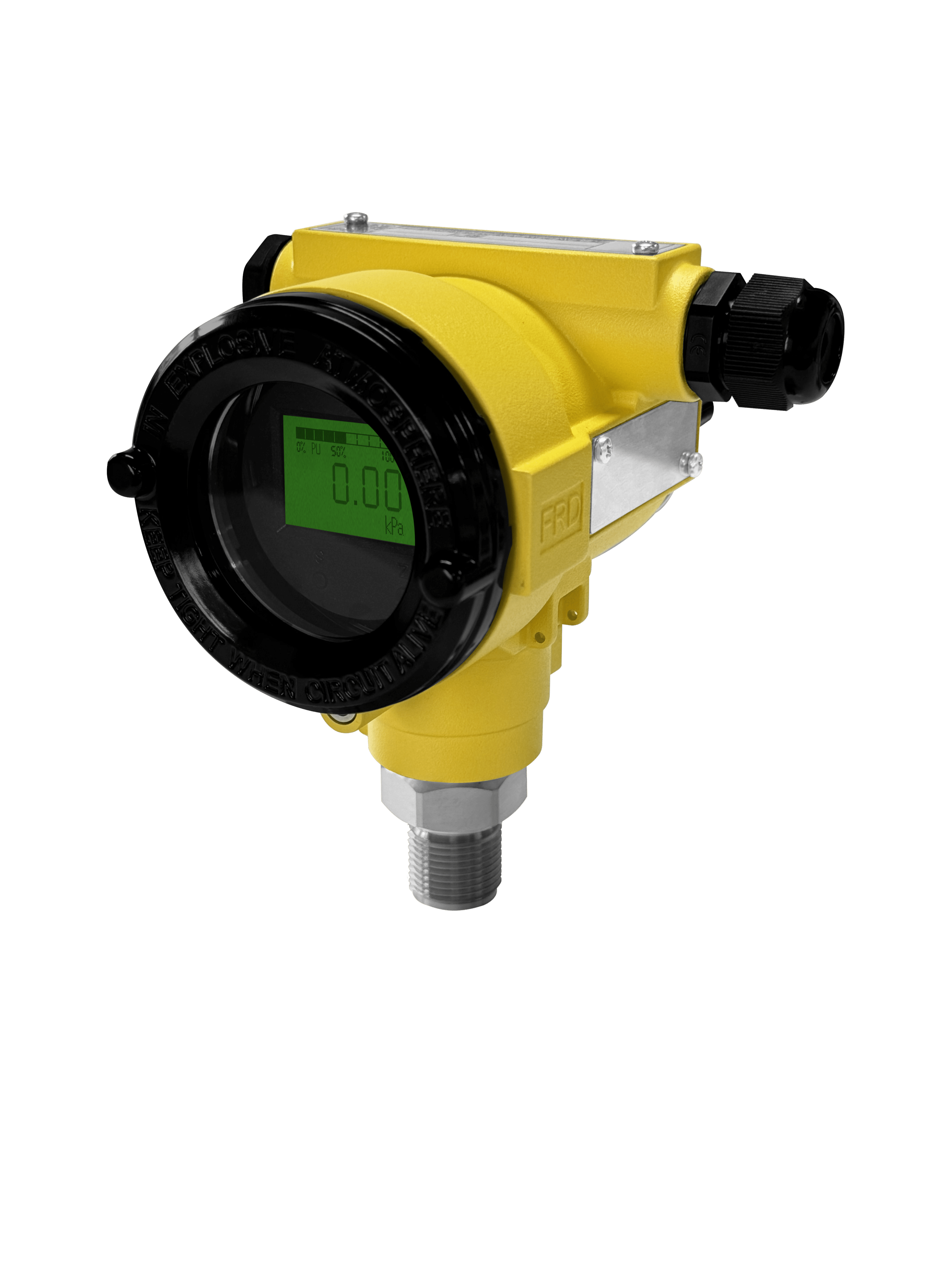

FD3051ST

FD3051S TA Absolute Pressure Transmitter

Product Feature
  • Monocrystalline Silicon Pressure Sensor Technology
  • High accuracy 0.075%,0.1%F.S
  • Adjustable up to 100:1 range ability
  • High sensitivity temperature sensor packaged in the sensor.
  • Micro/absolute pressure utilize the
  • no pressure transmission loss overload diaphragm patented technology
  • Long stability is ≤±0.1%/3years
  • 10 years ofmaintenance-free
  • nominal pressure: 0 … 100 mbar up to 0 … 400 bar

Inquiry of Product
PDF Download
  • Share:
  • Follow Us:
Facebook Twitter Linkedin Youtube Weixin Whatsapp

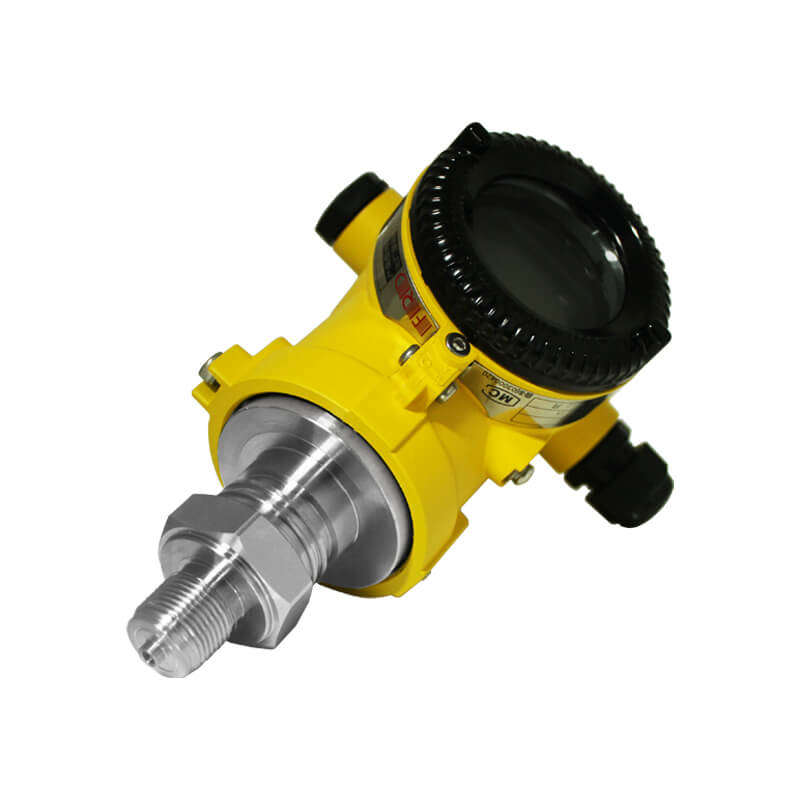

t2

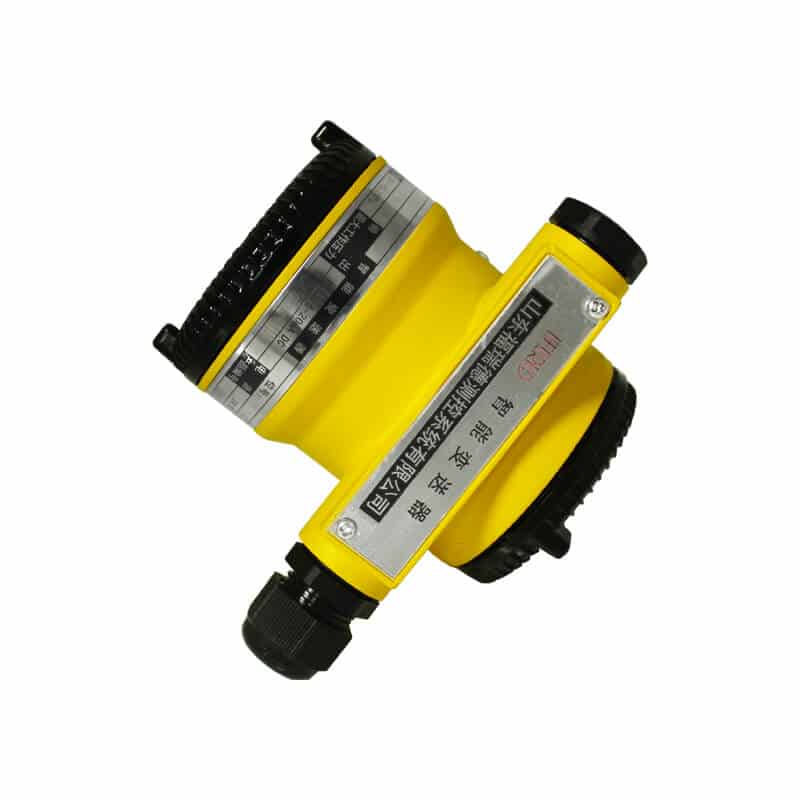

t3

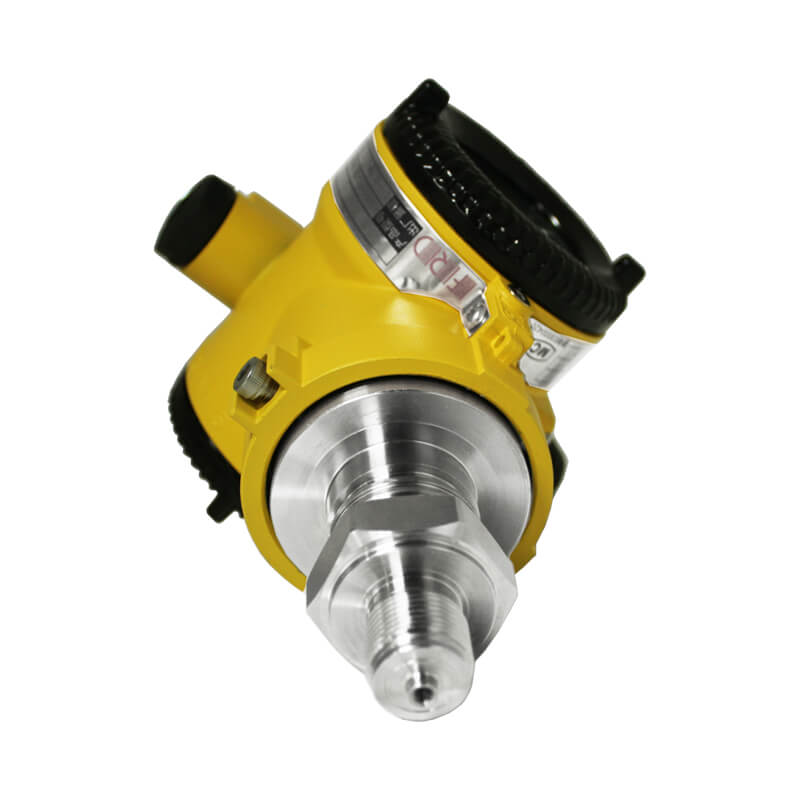

t4

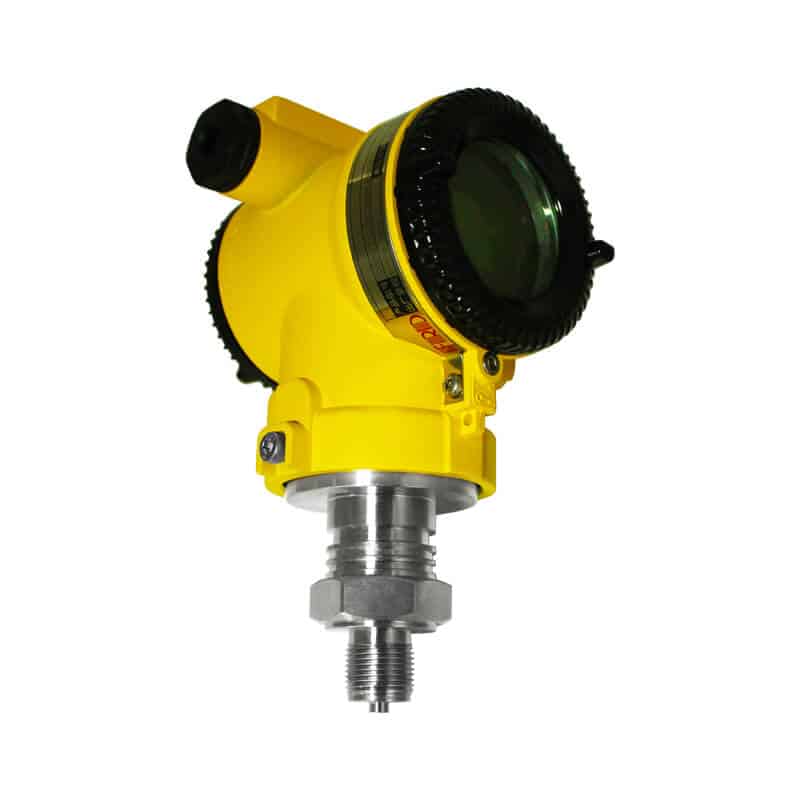

t1
Measuring Range0-50Pa～40MPa（See model selection table）
Pressure TypeGauge;Absolute;Negative pressure(Optional)
Accuracy0.075%F.S,0.1%F.S,0.25%F.S
Long Stability0.1%F.S/year
Working Temperature-20℃ ~80℃
Power Supply10V～30VDC（Recommended 24VDC）
Output Signal4mA～20mADC,1V-5VDC,RS485 Optional
Communication ProtocolMODBUS RTU,HART
Electrical ConnectionM20*1.5(F),1/2NPT Cable entry
Protection LevelIP65
Explosion ProofExd II C T6 Gb Ex ia II C T4 Gb Ex Td A21 IP66 T80℃
Warranty period12 months

FD3051S TG/TA pressure transmitter is suitable to measure liquid, gas, or steam flow as well as liquidlevel, density and pressure. FD3051S outputs a 4~20mADC signal corresponding to the measured pressure. The key features include quick response,remote set-up using communications,self-diagnostics and optional status output for pressure high/low alarm.
